Springback (Account) Book Binding
Version of article published in the New Bookbinder, Journal of Designer
Bookbinders, Vol 23, 2003. Download
These instructions for making a springback account book are derived from my
notes as an apprentice at the Kunstbuchbinderei
Klein, with adaptations over time. While my training is in the German tradition,
the steps outlined should not be radically different from the English tradition.
While the technique was originally patented in Great Britain in 1799 by John
and Joseph Williams 1, the authors have found very
few descriptions of this technique in contemporary English language texts. Alex
J. Vaughan describes the technique with great detail in Section II, Stationery
Binding of Modern Bookbinding. There is also an historical mention
in Bernard Middleton's History of English Craft Bookbinding, but it
does not detail the steps required to complete a binding. The German binding
literature, however, covers the springback quite thoroughly in such texts as
Paul Kersten, Heinrich Lüers, Gustav Moessner, Fritz Wiese, and Gerhard
Zahn, and the technique is still required learning for all hand bookbinding
apprentices in Germany.
As a style, the springback is firmly rooted in the 'trade' binding
tradition. The springback's robustness, and ability to lie flat and open for
extended periods of time without stressing the spine unduly make the structure
ideal for use as account and record books. These same qualities make it suitable
for guestbooks, lectern Bibles, and similarly used books. Regrettably the structure
has not seen much use on fine bindings or in contemporary book art, especially
as the structure would be a suitable platform for many elements of design bindings.
It's thick boards would provide a canvas for more sculptural or inset designs.
With some minor modification it could also serve as a means of presenting pop-up
The mechanics of the springback are quite intriguing. Thin boards are attached
at the fold of an unbacked textblock. A spine stiffener is attached to the thin
boards upon which the 'spring' is either built up in layers in situ,
as demonstrated in this article, or is attached premade. The latter made of
metal or molded heavy cardboard springs were also used, especially where springbacks
were a large part of the business. The thick boards are then attached and the

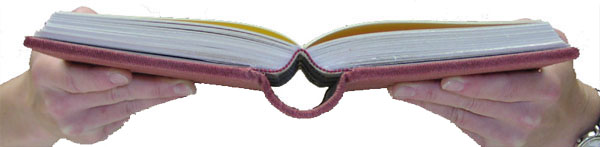

book covered. Upon opening the thin boards push against the spring, which then
throws the text open, allowing the book to lie flat.
Description from Bookbinding
and the Conservation of Books: A Dictionary of Descriptive Terminology,
Blankbook binding is one of the principal subdivisions of STATIONERY
BINDING and differs greatly from the other major nit of binding, LETTERPRESS
BINDING . One of the major differences is that blankbooks, or account
books, as they are also called, are rounded but not backed, having instead
, which, in conjunction with the LEVERS
, causes the spine of the book to "spring" up when the book is opened,
thus giving full access to the gutter of the opposing pages. The best blankbook
binding is very durable, with sewing on wide bands of webbing, rather than
tapes, the ends of which are secured between split boards. The books also
have heavy linings and strongly reinforced endpapers, called "joints"
in a blankbook. In addition, it is not unusual for the folios to be sewn first
to heavy cloth guards before being sewn to the webbings. Additional strength
is sometimes imparted by hubs on the spine (which also protect the lettering)
and bands either over or blankbook frame under the covering material. Although
formerly always covered in leather, many blankbooks are now covered in heavy
duck or canvas. Called "account-book binding" in Great Britain.
(58 , 320
, 339 , 343
The authors hope that these instructions will inspire binders and book artists
to learn more about the structure and experiment with it.

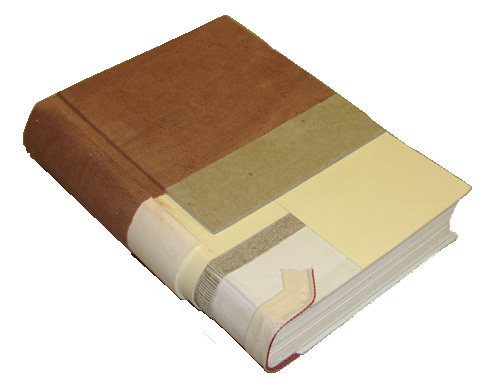

Interactive cut-away diagram:
Move cursor over image for explanation
Fold and press signatures as usual.
Make the Endsheets:

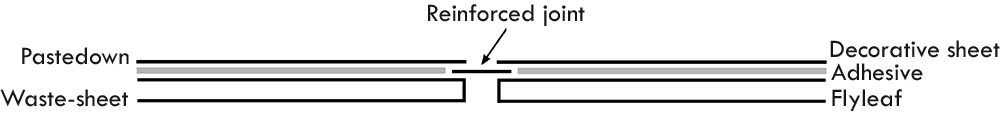

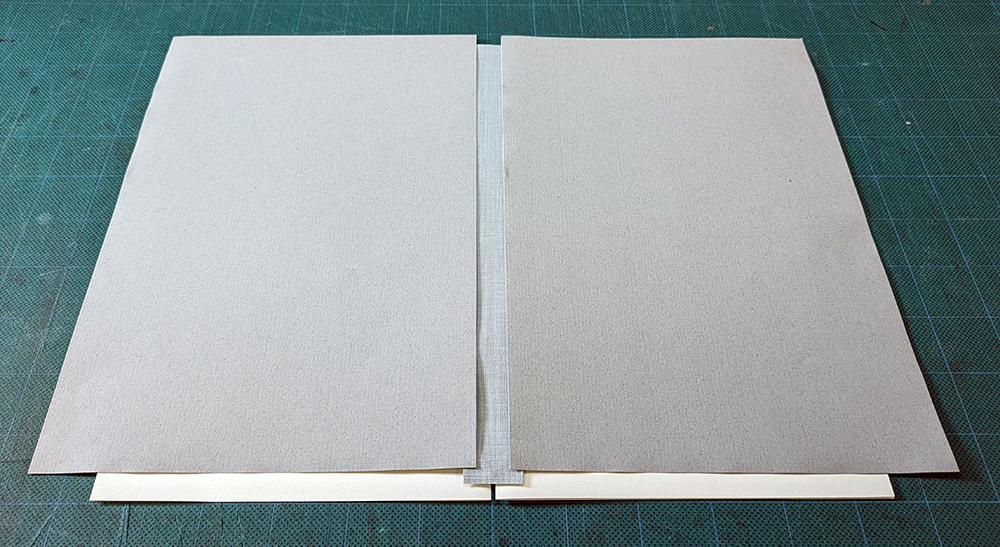

[Figure 1. Endsheet construction - Click on image to enlarge]
Fold and cut four folios of plain endsheet paper and four single sheets of
decorative or plain colored paper slightly larger than the textblock to allow
Cut 2 strips of cloth or reinforced leather approximately 1 cm wide and greater
than the height of your endsheets.
Glue up one of the strips of cloth (white or paper side if lined) and adhere
2 of the folios to the strip as shown, leaving a 1 mm gap between the folios.
Glue out decorative endsheets and put down, leaving as much of the cloth/leather
strip exposed as desired.

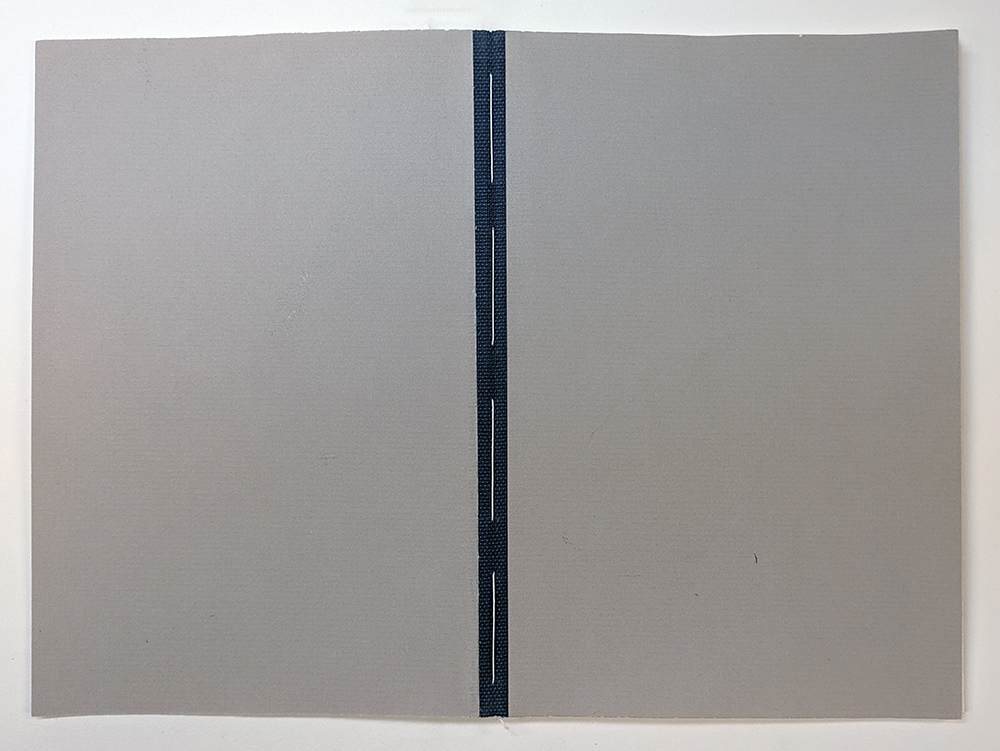

[Figure 2. Completed endsheet- Click on image to enlarge]
Press and allow to dry.
Fold so that decorative sheets are facing each other and trim to size.
Prepare for Sewing:
Tip the cloth 'guard' to the bottom of the 2nd and 2nd-to-last
text signatures. Fold around 1st and last two text signatures. Trim signatures
and endsheets to size and sew on tapes. (The textblock can also be trimmed after

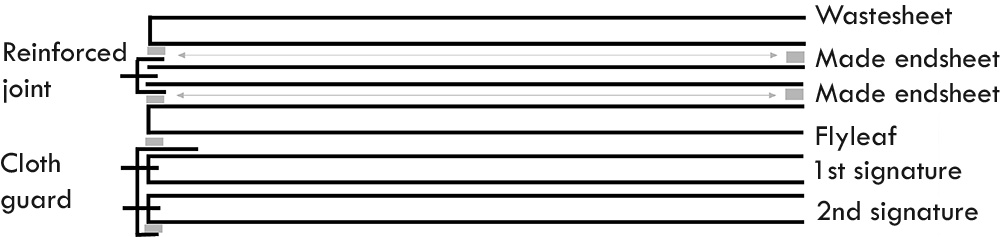

[Figure 3. Make-up of 1st and last signatures - Click on image to enlarge]
Sew on tapes. The final length of the tapes will be the width of the spine
plus two times 1/3 the board width. Thread should be chosen so as not to introduce
more swell than can be taken up during rounding (springbacks are not backed),
which can be quite pronounced. A linked stitch is often used. The first and
last leaves are waste-sheets and will be used to attach the thin boards to later.
[Figure 4. Textblock during sewing - Click on image to enlarge]
Square up the textblock and glue up the spine with PVA. Let dry. This step
is critical, and adhesion between the signatures must be solid or the book will
Round so that the shape is more pronouncedly round than usual, and the swell

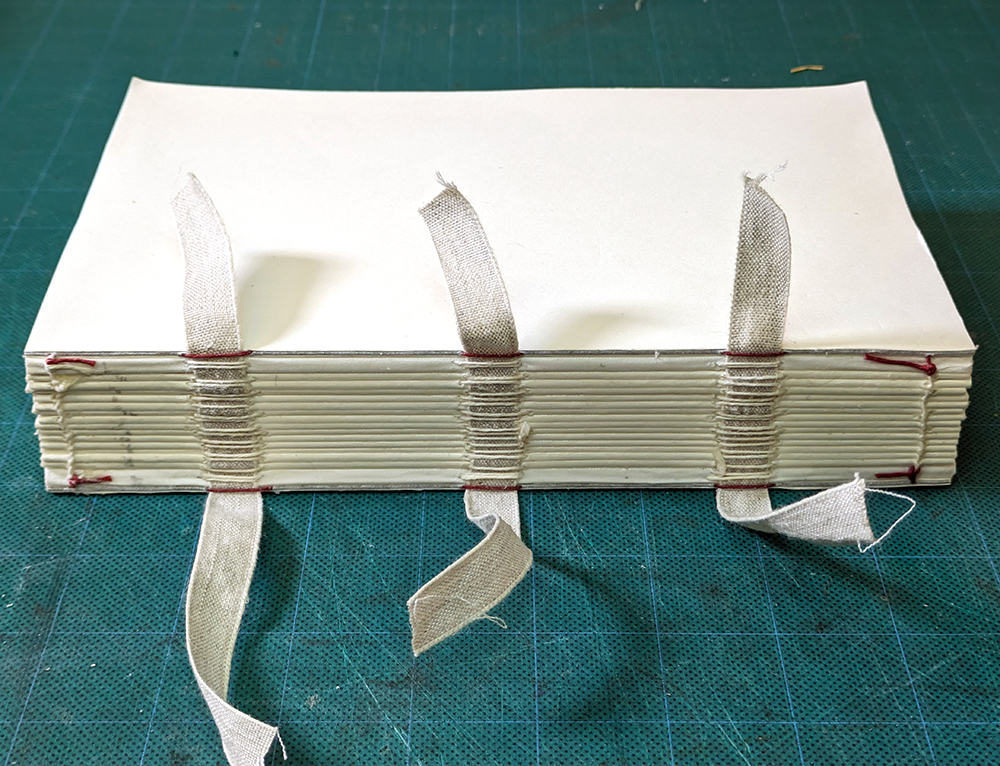

[Figure 5. Sewn textblock - Click on image to enlarge]

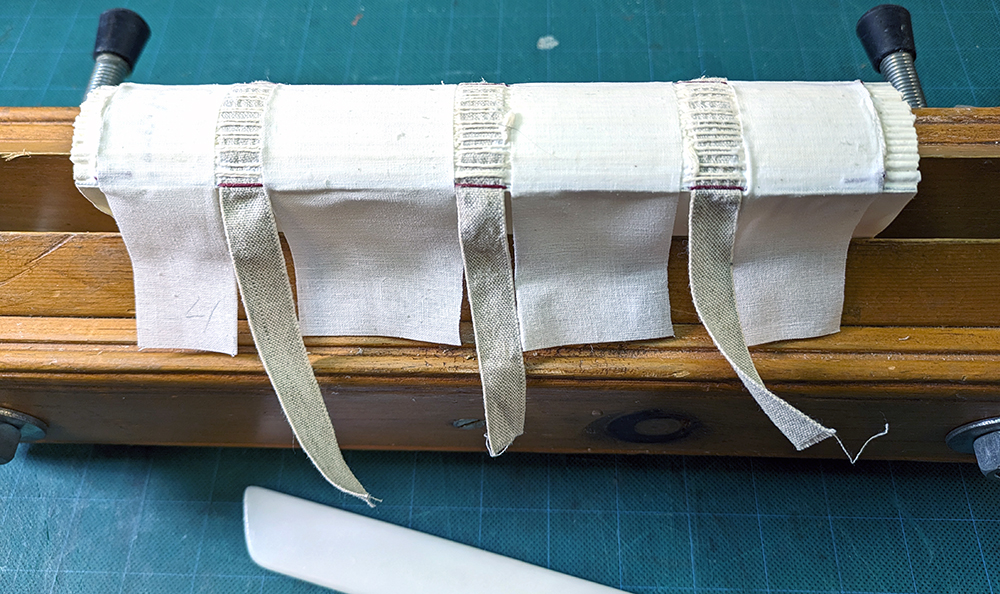

Cut the cloth for lining the spine strips the length of the tapes and the width
of the space between the tapes and tape/kettlestitch. The spine lining can be
linen, muslin, or jaconette, and should be an appropriate weight for the size
of the book. Glue to the spine with PVA.
The thin boards act as a lever and work with the spring to throw the spine

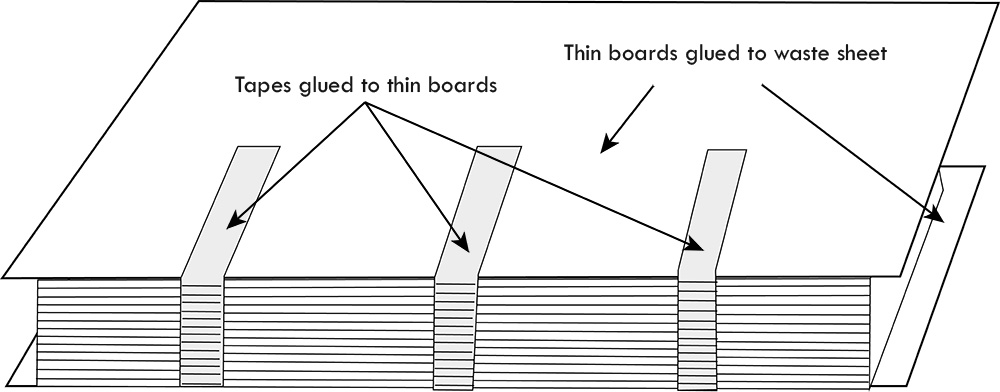

[Figure 6. Thin boards with tapes and spine linings - Click on image to enlarge]
Cut 2 pieces of pressboard (25pt) or chipboard larger than the final board
size to allow for future trimming of the final square. Glue out about 1/4 of
the waste-sheet from the spine and attach the 'thin board' about
1 mm back from the shoulder.

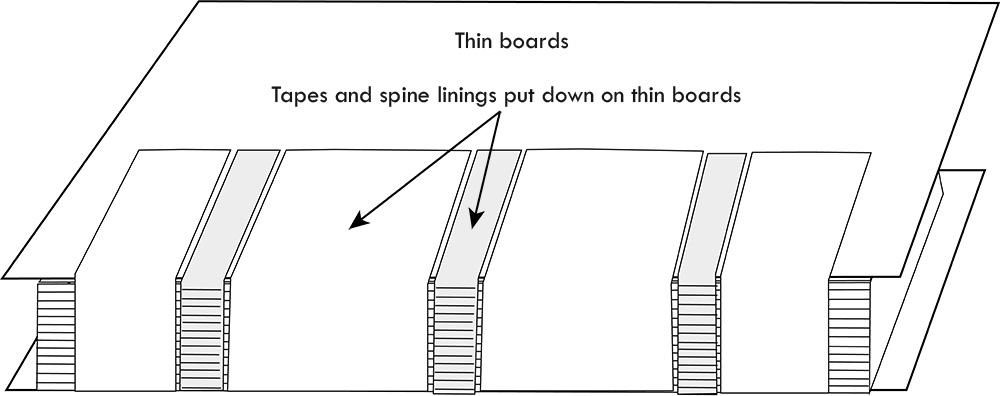

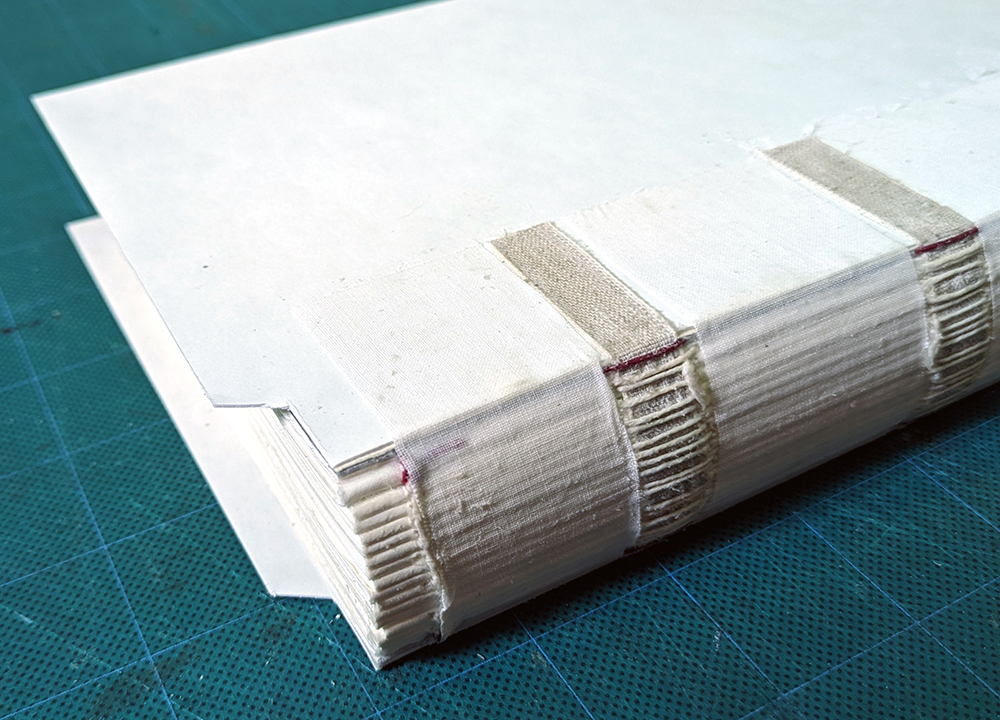

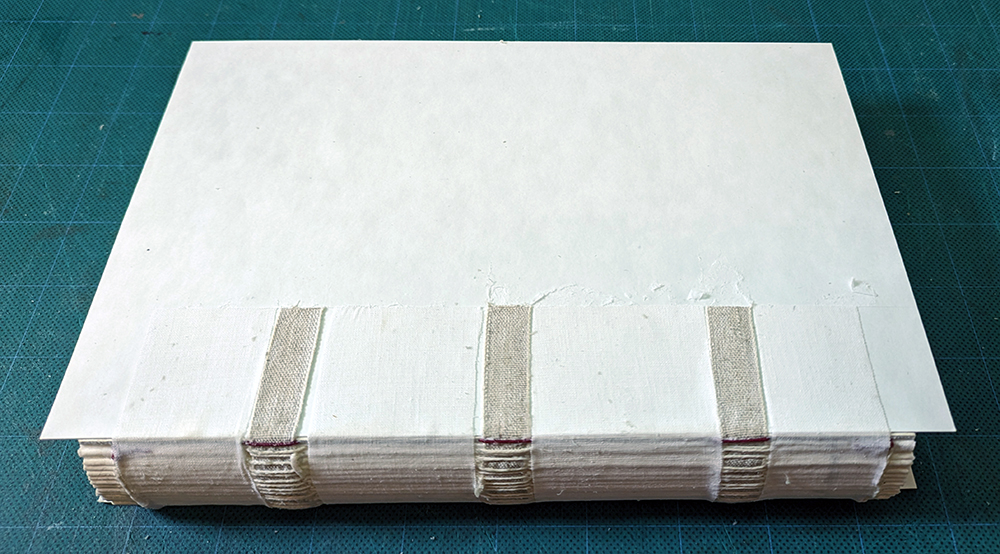

[Figure 7. Tapes and spine linings put down on thin boards - Click on image
Apply glue to the top of the 'thin' board and put down the tapes and spine
linings so that they extend onto a third of the boards.

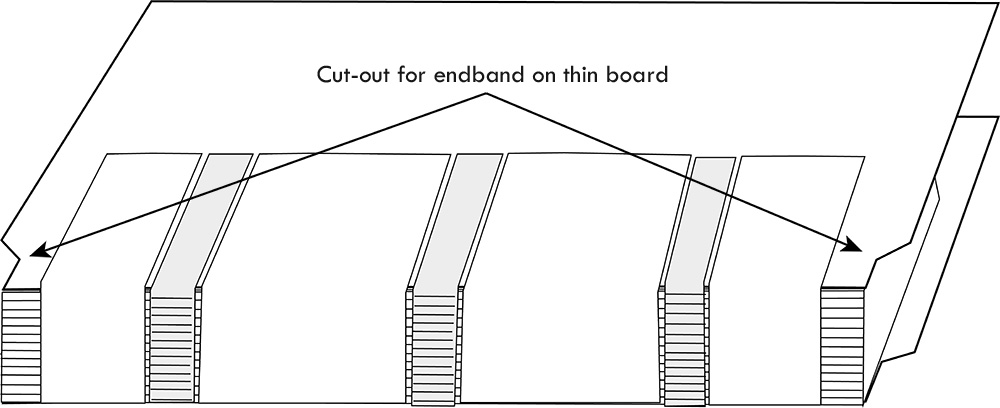

Trim out the 'thin' board to accommodate the endbands as follows:
Cut 1.5cm from the shoulder along the head and tail edge of the textblock,
then out at a 45º angle away from the spine to the edge of the board. (See
Figures 7 and 8.) While machine-made or wrapped leather endbands are traditional
for this style of binding, sewn endbands can also be used. In the latter case,
do not trim out the thin boards, and sew the endbands as usual.
Glue made endbands onto the thin boards, angling below the board edge at the
bevel. Cut a triangle out of the endband towards the ''bead' to facilitate
angling. Using a scalpel, pare down the excess to reduce thickness.

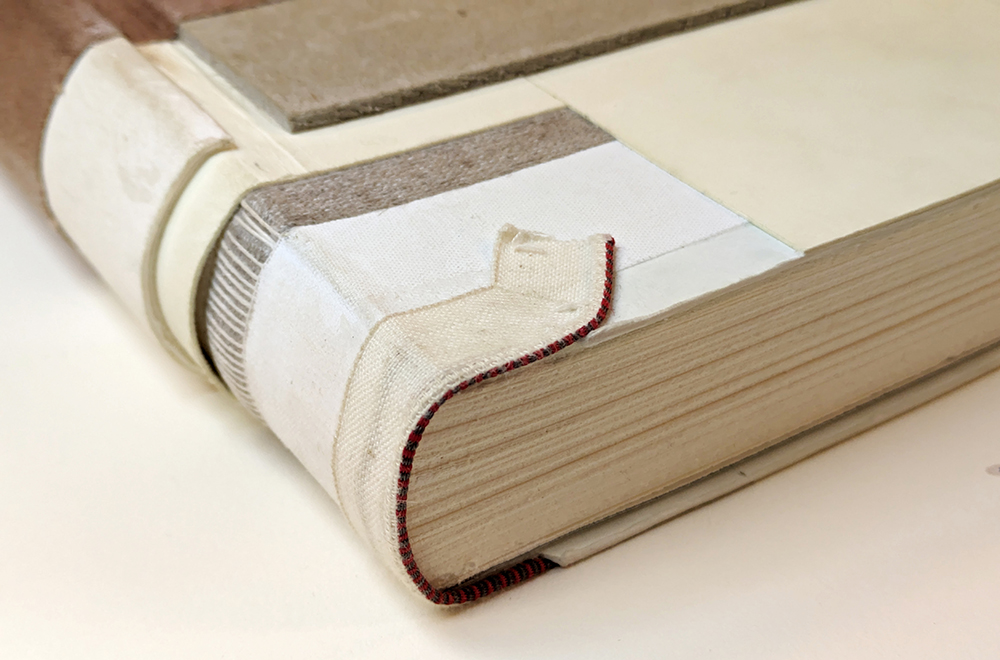

[Figure 8. Detail of endband and cut-out on 'thin' board - Click on image to

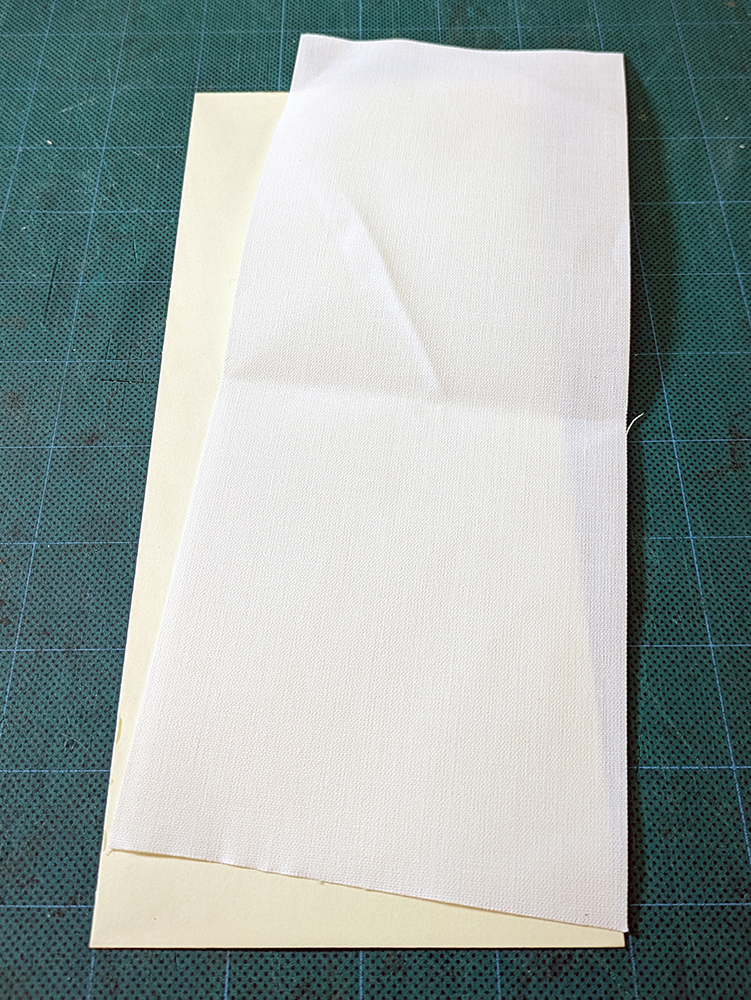

Cut a piece of 20 pt folder stock the length of the tapes and greater than
the height of the book and line with 'hinge'' cloth or cotton muslin.
The grain, as always, should be parallel to the spine.
This will make the spine stiffener and form the foundation for the 'spring.'

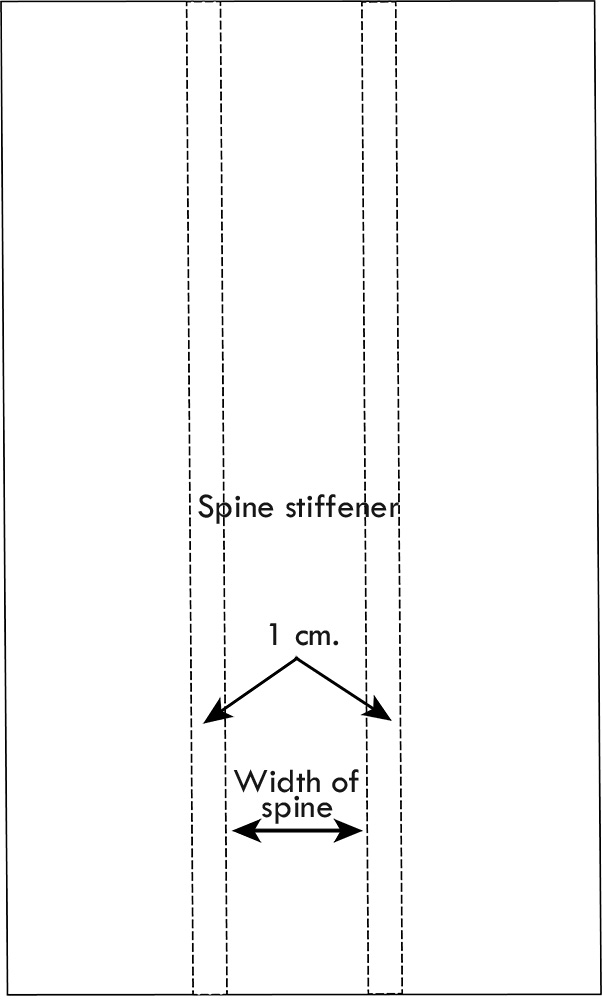

[Figure 9. 'Inside' of spine stiffener showing creases - Click on image to enlarge]
Measuring from the center, mark the width of the spine, then round the spine
stiffener, and crease at the shoulder marks and 1 cm out from each of those

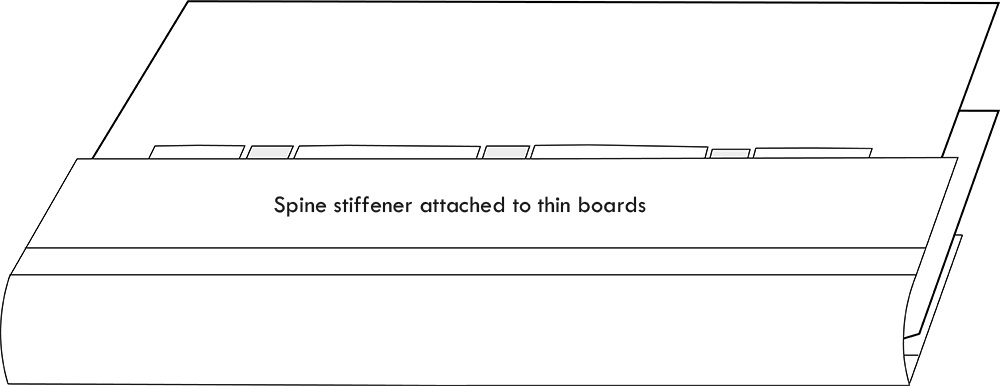

[Figure 10. Spine stiffener attached to 'thin' boards' - Click on image to enlarge]
Glue up the cloth side of the spine stiffener from the edges to the 1 cm creases
and place on the book. Give a quick nip in the press to ensure adhesion. Trim
the tapes and cloth strips so they are even with the edge of the spine stiffener.

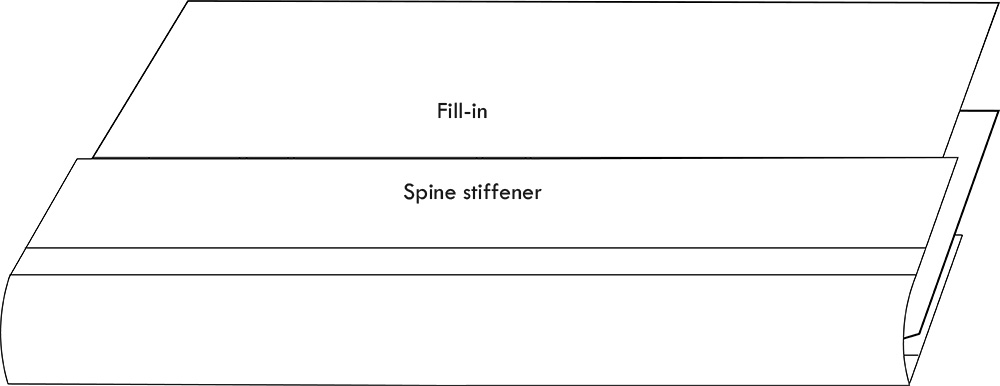

[Figure 11. Remainder of 'thin' board filled-in - Click on image to enlarge]
Fill in the remainder of the 'thin' boards so they are even with the spine
Making the Spring:
Levered out by the thin boards, the spring causes the textblock to throw itself
upward upon opening.
Do not open book until the after the spring has completely dried. The book
will need to be opened in order to complete the turn-ins.
Determine the thickness of the 'thick' board. Account books generally had thicker
boards, so a 96pt board may be appropriate. The spring will equal the thickness
of the 'thick' board.
There are two styles of 'built-up' spring. The one described in
this article has all the layers lining up so that the edge is perpendicular
to the board. The other style builds up the spine in layers which are cut to
the same width. As the layers are built up, the spring will develop a rounded
edge which is mirrored by the board and smoothed by sanding.
Using a pencil, mark 3-4 mm from the shoulder creases onto the boards. This
will indicate the width of the first layer of the spring.

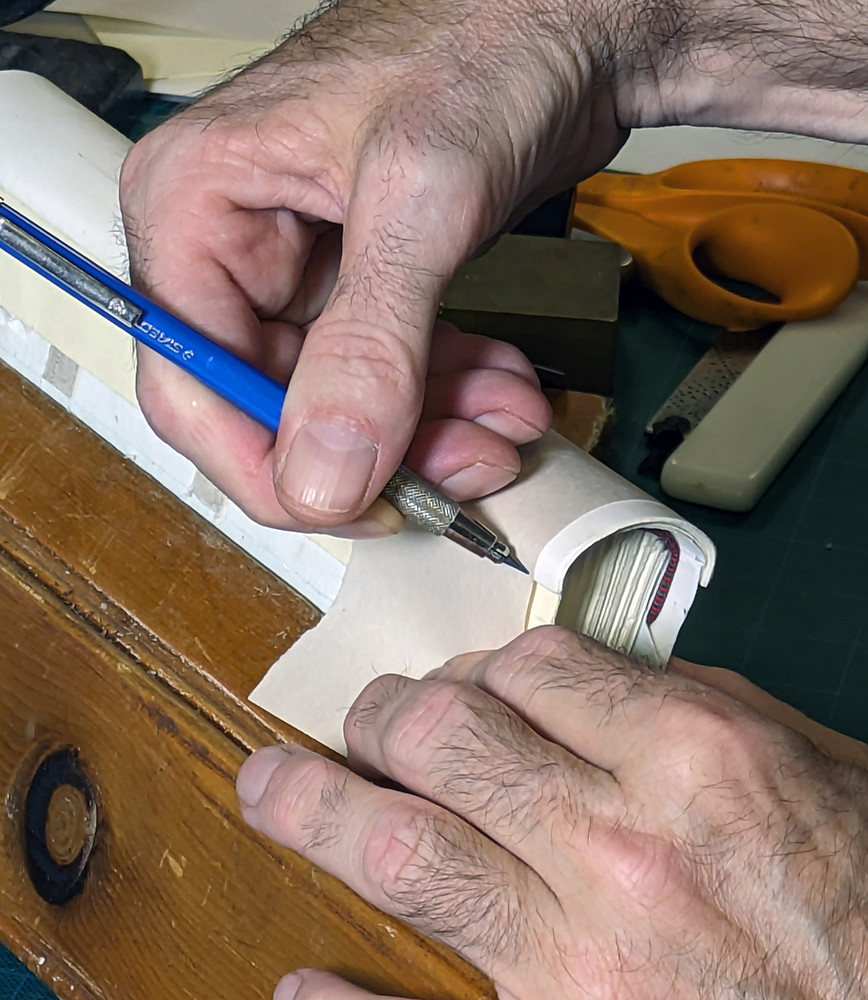

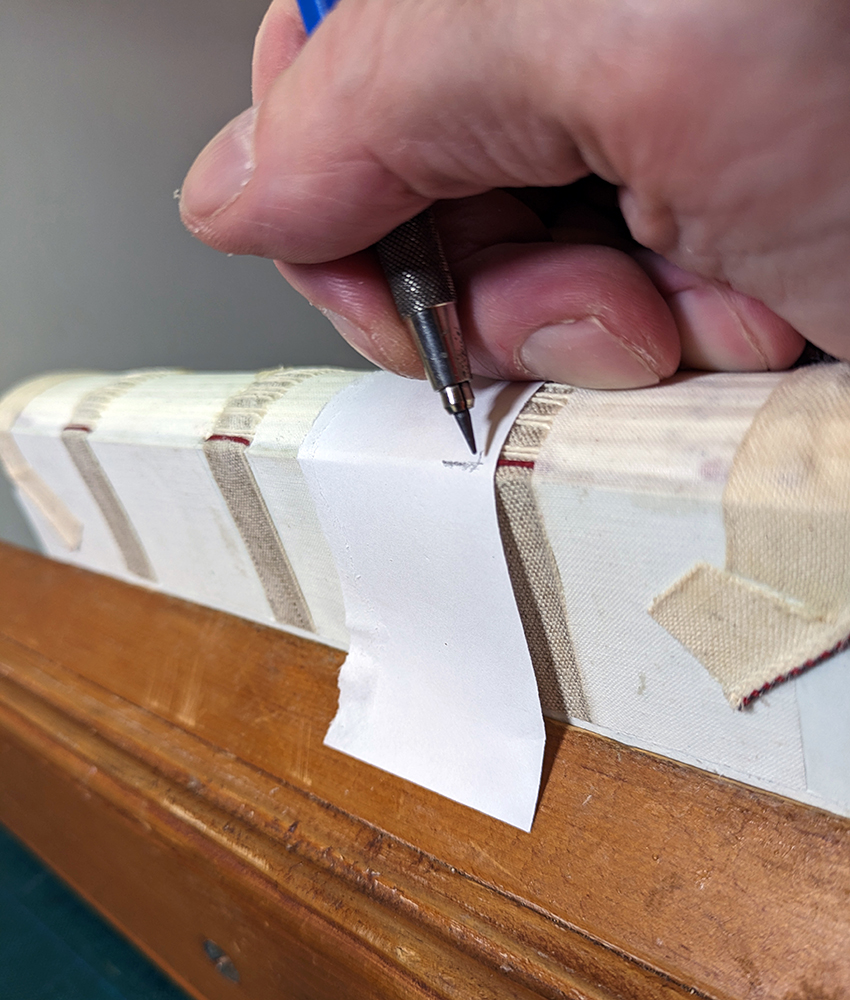

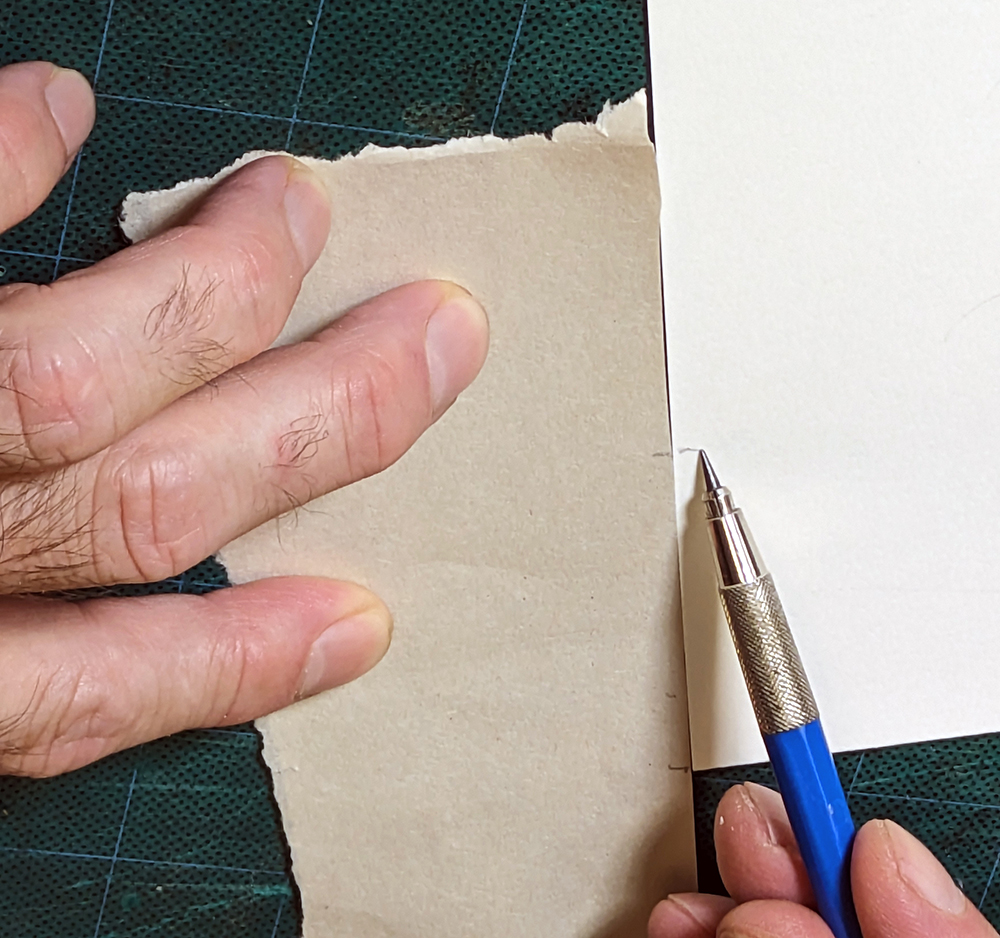

[Figure 12. Measuring width of spring layer - Click on image to enlarge]
Using a heavy-weight paper like Stonehenge or thin folder stock, cut a strip
to wrap the spine the width of the space between the marks. With a folder, score
the 3-4 mm on each side of the strip which will extend onto the boards. This
will make it easier when rubbing down the layers of the spine. The length should
be longer than the height of the boards and will be cut down later.

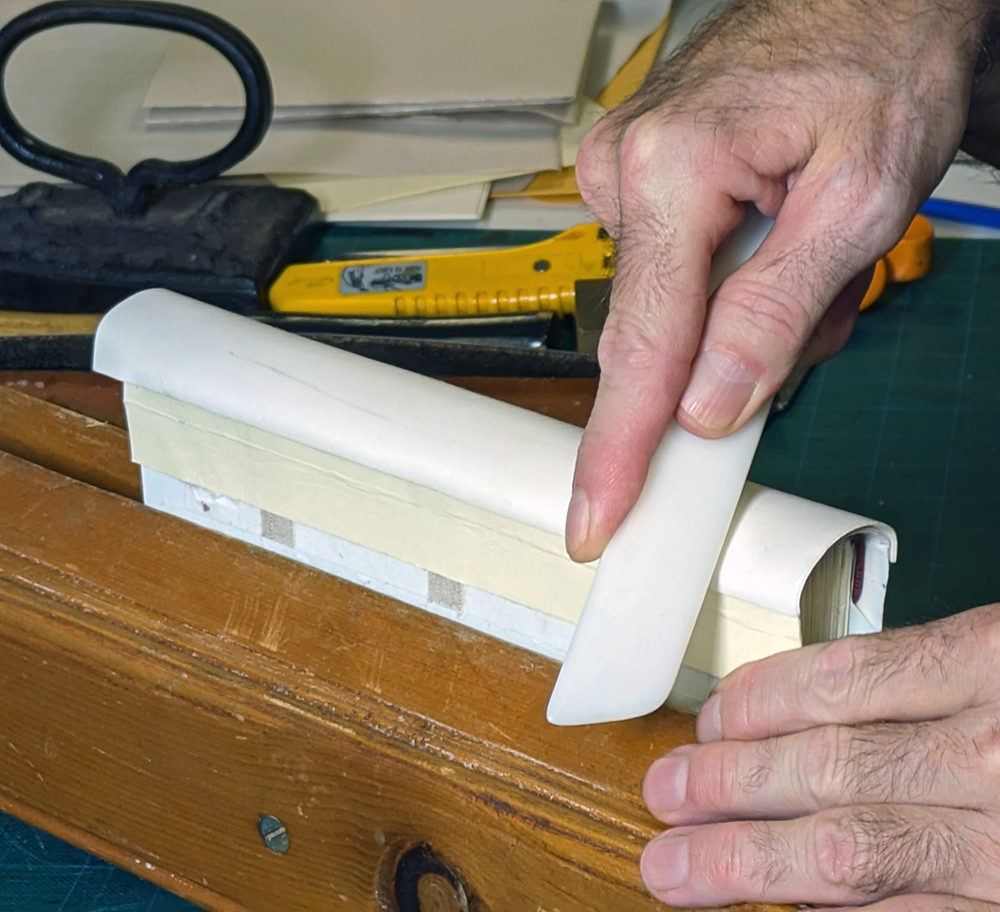

[Figure 13. Rubbing down layers of spring - Click on image to enlarge]
Dampen the strip and adhere to the spine with PVA making sure everything is
even and boned down very well.

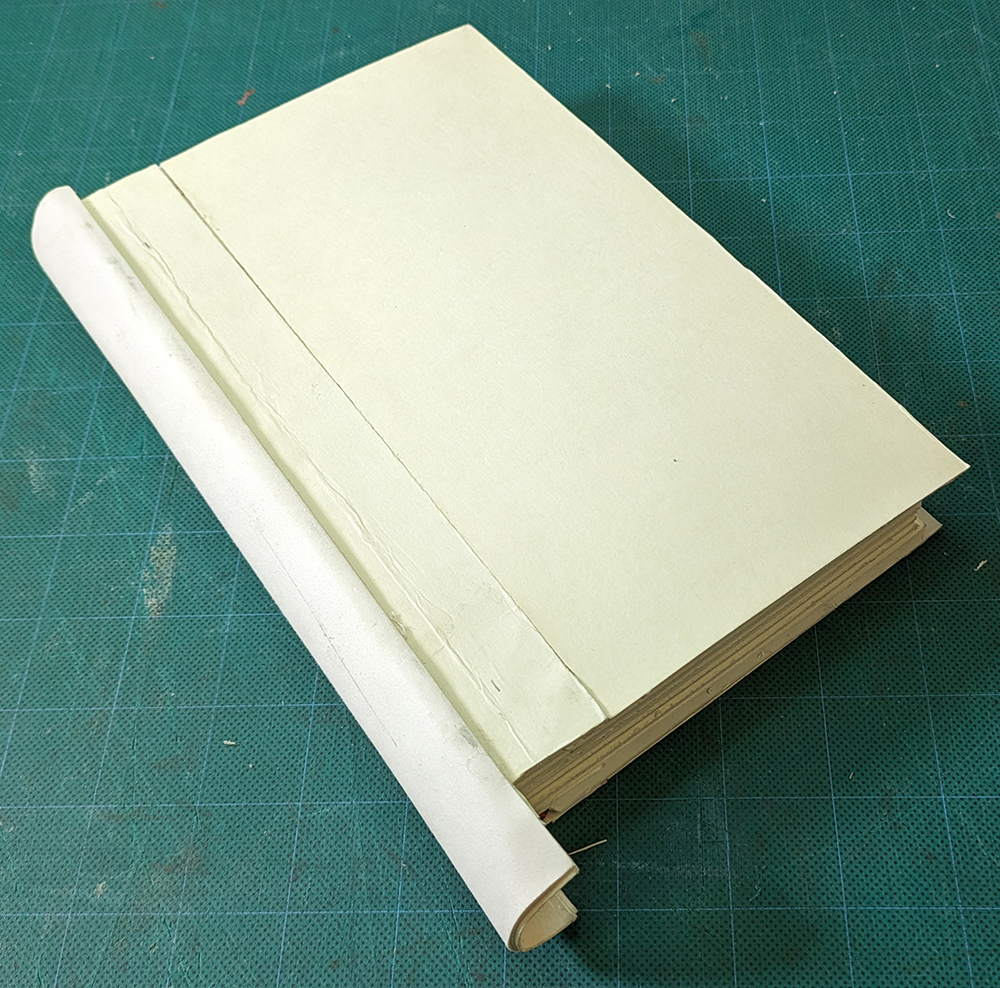

[Figure 14. Completed spring on book - Click on image to enlarge]
Build up the spring in layers, measuring each layer individually to ensure
that they line up, and rubbing down well each time until the thickness of the
binders board used for the boards is reached.
Cut the two pieces of binders board to be used for the boards to the size of
the thin boards, less the distance to the 1cm crease by the spring. At the 1
cm crease, adhere the binder's board to the thin board with PVA making sure
it is parallel to the spring on the spine. Place in the press and give a good

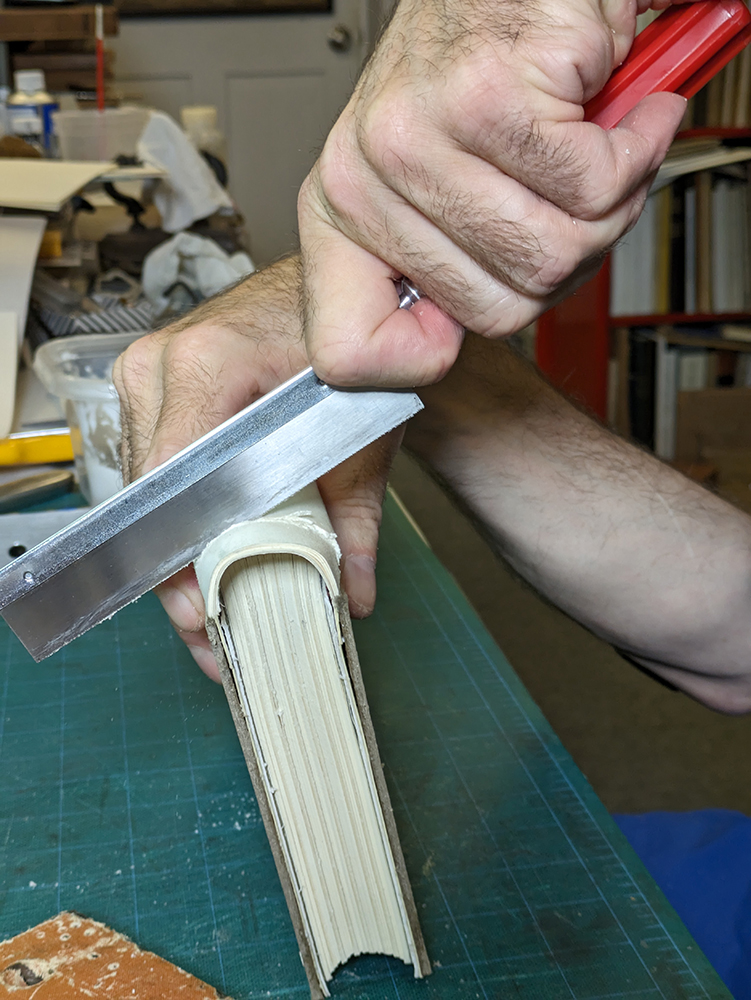

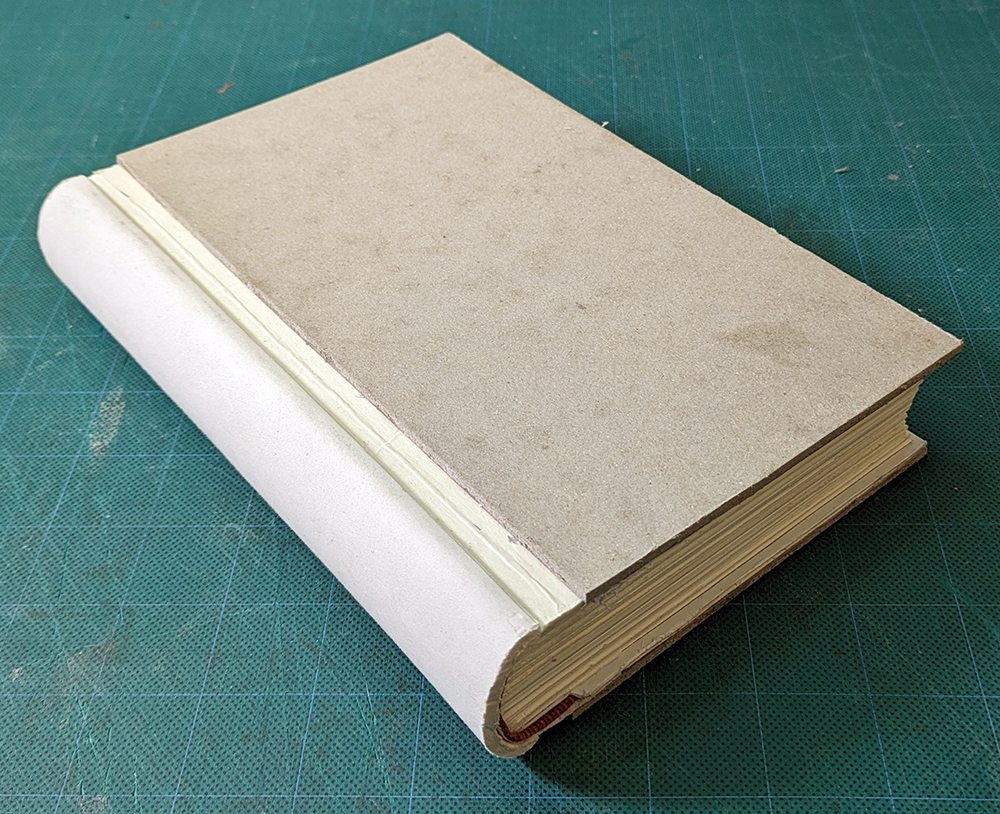

[Figure 15. Cutting spring ends & Figure 16. Book after trimming of spring
and squares - Click on images to enlarge]
Trim the boards leaving an appropriate square. Using the boards as a guide,
cut the ends of the spring with a fine-toothed saw and lightly sand edges.

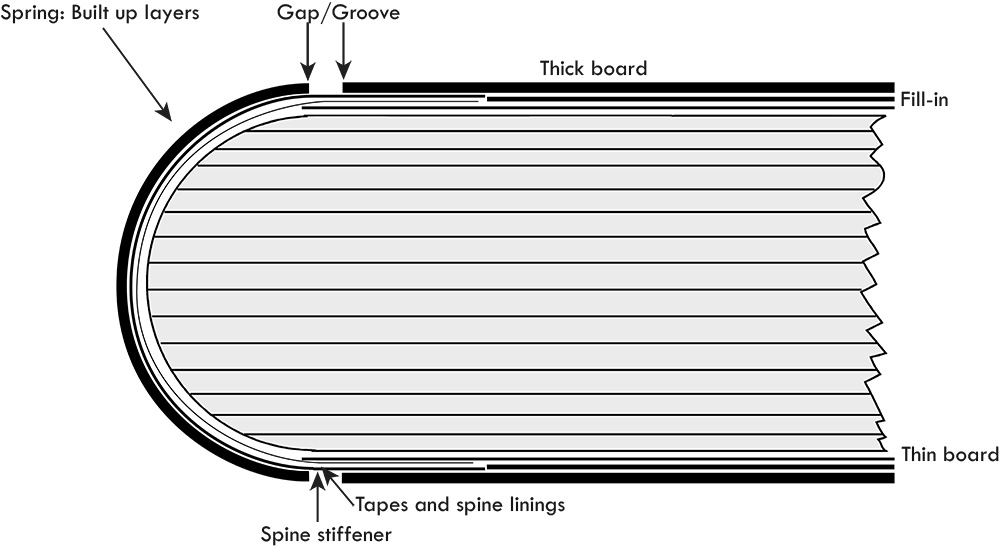

[Figure 17. Cross section showing make-up of boards and spine - Click on image
Cut the cloth or leather to size. If cloth is used, it should be an unsized
cloth such as linen, moleskin, or denim to make it easier to work the turn-ins.
Cloth can be left natural, or colored with acrylics or fabric dye. With unsized
cloth, it may be necessary to apply the adhesive to the spine and boards rather
than to the cloth. The covering process will be similar to other books bound
Tear off the waste sheet that initially held the 'thin boards' and sand
Adhere the material to the spine first, then work into the grooves and across
the boards. Cut strips of board to fit and press to ensure good adhesion in
the groove. If working in leather, take precautions so as not to crush the grain.
Take out strips, and let dry under light weight.

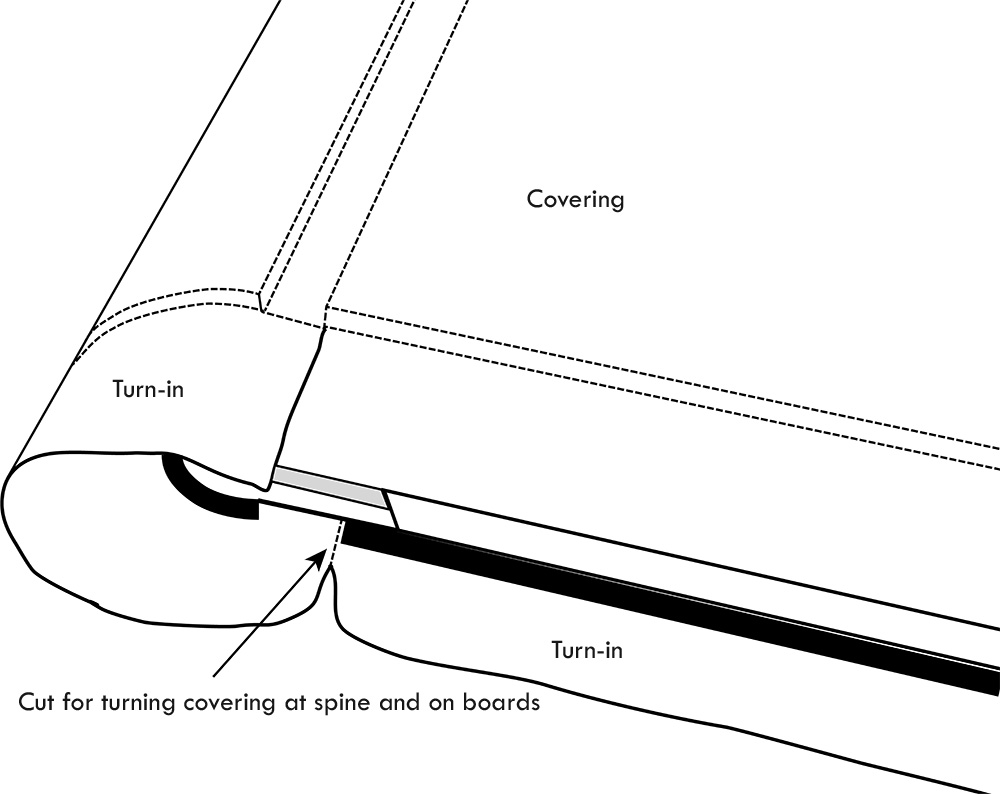

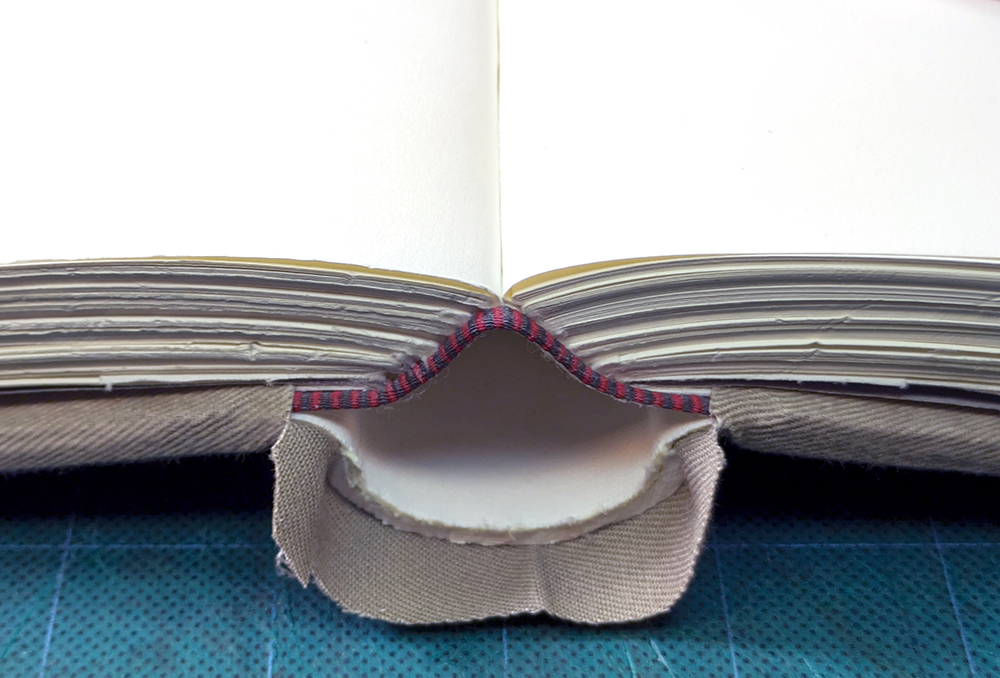

[Figure 18. Detail showing cuts to covering material at spine - Click on image
Next, make an incision into the covering material about 1cm from the shoulder.
The incision should stop slightly more than a board thickness away from the
edge of the board to allow the material to be turned in.
Carefully open the book, working towards the center. Turn in at the spine,
making sure the material is smooth, particularly under the spine stiffener.
Turn in the remainder of the head and tail, then the fore-edge.
When dry, trim out. Fill in as appropriate. Finally, put down the paste-down/boardsheet.

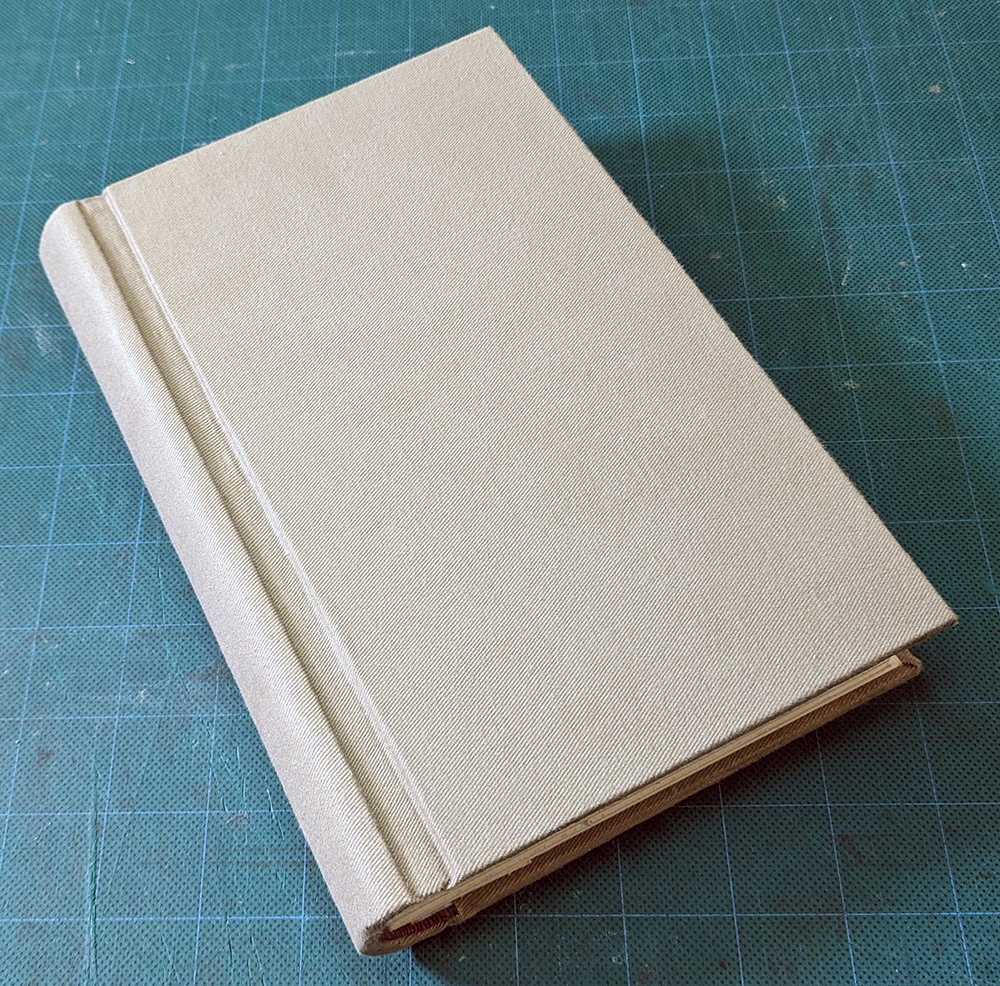

[Figure 19. Completed full and half cloth bindings - Click on image to enlarge]
Finally, carefully leaf through the book from front to back, and back again.
Enjoy, and watch it S P R I N G!

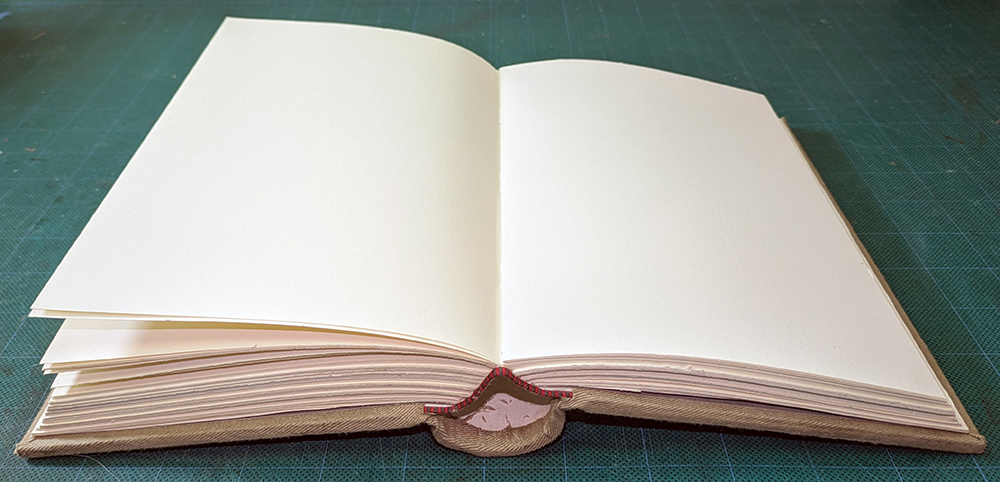

[Figure 21. Open book showing action of spine]
Description of the style:
Don Etherington and Matt Roberts. Bookbinding and the Conservation
of Books: A dictionary of descriptive terminology. Washington, D.C.:
Government Printing Office, 1982.
Middleton, Bernard C. (1996) A History of English Craft Bookbinding,
New Castle, DE: Oak Knoll Press.
Government Printing Office (1962) Theory and Practice of Bookbinding,
Washington, D.C.: Government Printing Office.
Hasluck, Paul N. (1912) Bookbinding, Philadelphia: David McKay.
Mason, John. (1933) Bookbinding and Ruling, London: Sir Isaac
Pitman & Sons, Ltd. This is volume 5 of The Art and Practice of
Printing: A work in six volumes, William Atkins, Editor.
Pleger, John. (1924) Bookbinding, Chicago: Inland Printing Company.
Vaughan, Alex J. (1996) Modern Bookbinding, London: Robert Hale.
Verheyen, Peter D. (2004) The
Springback in the English Tradition.
Whetton, Harry (1946) Practical Printing and Binding: A complete guide
to the latest developments in all branches of the printer's craft,
London: Odhams Press Limited.
Henningsen, Thorwald (1969) Handbuch für den Buchbinder,
St. Gallen: Rudolf Hostettler.
Kersten, Paul (1921) L. Brade's Illustrieres Buchbinderbuch: Ein Lehr-
und Handbuch der gesamten Buchbinderei und aller in dieses Fach eingeschlagenden
Techniken, Halle: Verlag von Wilhelm Knapp.
Lüers, Heinrich (1943) Das Fachwissen des Buchbinders, Stuttgart:
Max Hettler Verlag.
Moessner, Gustav (1969) Die Täglichen Buchbinderarbeiten,
Stuttgart: Max Hettler Verlag.
Verheyen, Peter D. and Conn, Donia. The
Springback: Account Book Binding. London: Designer Bookbinders,
The New Bookbinder, Vol 23, 2003.
Wiese, Fritz (1983) Der Bucheinband: Eine Arbeitskunde mit Werkszeichnungen,
Hannover: Schlüterische Verlagsanstalt und Druckerei.
Wolpler, Florian. Der
Sprungrücken. Online tutorial, in German. Part of the Website
Zahn, Gerhard (1990) Grundwissen für Buchbinder: Schwerpunkt Einzelfertigung,
Itzehoe: Verlag Beruf + Schule.
Notes and References:
Bernard C. (1996) A History of English Craft Bookbinding, New Castle,
DE: Oak Knoll Press, pp. 114-116.
Notes on Contributors:
Peter Verheyen is Conservation Librarian at the Syracuse University Library.
Primary training was through formal apprenticeship at the Kunstbuchbinderei
D. Klein in Gelsenkirchen, Germany, and study at both the Centro del bel Libro
in Ascona and the Folger Shakespeare Library. He has worked with William Minter
in Chicago and at the Yale and Cornell University Libraries. His work has been
exhibited widely with the Guild of Book Workers and in other exhibits in the
US and abroad. Teaching activities have included ongoing classes and workshops
on specific topics. He is also past exhibitions and publicity chair for the
Guild of Book Workers. In 1994, he founded Book_Arts-L and the Book Arts Web
at <http//www.philobiblon.com>. For more information see his curriculum vitae.
Donia Conn was introduced to bookbinding through
a required art class at St. Olaf College in Minnesota. While a Ph. D.
student in Mathematics at the University of Wisconsin -Madison, she started
working with Jim Dast in the library’s book repair department. After taking
bookbinding classes at the Minnesota Center for Book Arts she entered
the Conservation Studies program at the University of Texas - Austin.
Donia has interned with Tony Cains at Trinity College, Dublin and J. Frank
Mowery at the Folger Shakespeare Library in Washington DC and has worked
as a book and paper conservator, as well as binder-in-residence, for various
institutions across the US. She served as Head of Conservation Services
at Northwestern University Library and worked for NEDCC doing outreach
and training. She is currently working in private practice. For more information
see her curriculum vitae.
