Peter Verheyen - Bookworks

The works depicted here were created by Peter D. Verheyen between 1987 and the present. Most of them have been exhibited in one or more juried or invitational exhibitions. To find out more about him, continue on to his resume.

Click on book titles for larger image.

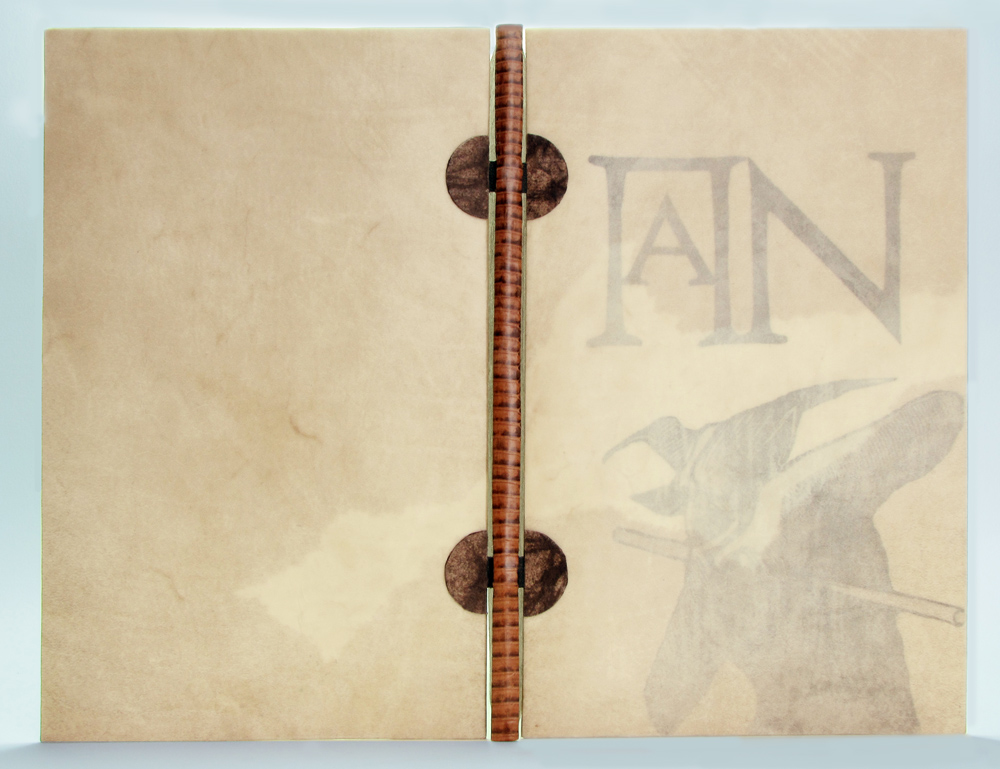

Eight Wood Engravings On A Theme Of Pan (Northampton: Pennyroyal Press, 1980)
Top image | Bottom image

Dorfner/de Gonet "open joint" style binding. Text sewn on two reinforced leather tapes; bottom- and fore-edge left uncut with graphite top edge; black leather endband; spine covered in snake-skin; "O'Malley Crackle" flyleaves; boards covered in Pergamena goat vellum with design taken from illustrations underneath; "O'Malley Crackle" doublures and roundels on front of boards. Housed in Layered Indigo Night semi-soft slipcase. 26 x 16 x 1.7 cm. Bound 2014.

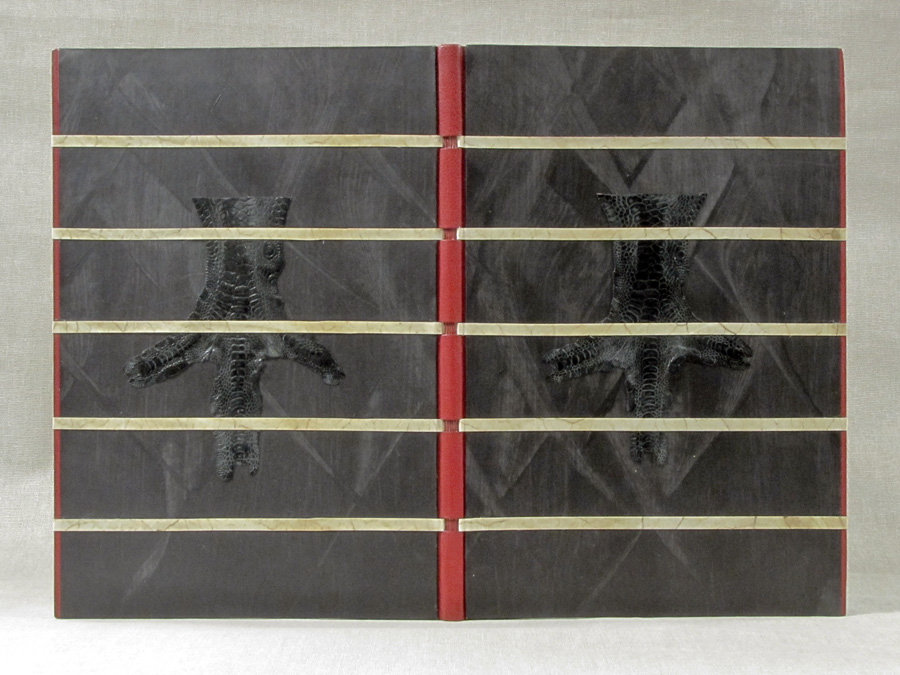

Edgar Allan Poe, The Raven / Le Courbeau, New York: Walker & Co, 1968. Translation by Stéfane Mallarmé, illustrations by Eduard Manet (1875 edition)

Modified Bradel binding (Gebrochener Rücken); sewn on 5 vellum slips; pastepaper endpapers by the binder; graphite top edge; endbands of rolled gray leather; spine covered in red chagrin leather with cutouts to reveal slips and sewing; boards edged with red red chagrin along fore-edge and covered in pastepaper by the binder with black chicken foot leather and vellum slip onlays. 27 x 18.5 x 1 cm. Bound 2013.

Gaylord Schanilec and Clarke Garry, Mayflies of the Driftless Region, Midnight Paper Sales Press, 2005.

Dorfner/de Gonet "open joint" binding; sewn on 3 brown salmon leather slips; flyleaves and doublures of Cave Paper “layered indigo day” paper; graphite top edge; rolled endbands brown salmon leather; spine covered in gray salmon leather; boards covered in full vellum with printed illustrations from text below; salmon leather slips attached to boards and framed with decorative weathered wood veneer; tied mayfly attached to front board. 26.5 x 19 x 2 cm. Bound 2013.

A description of the structure and binding process can be read on the Pressbengel Project blog.

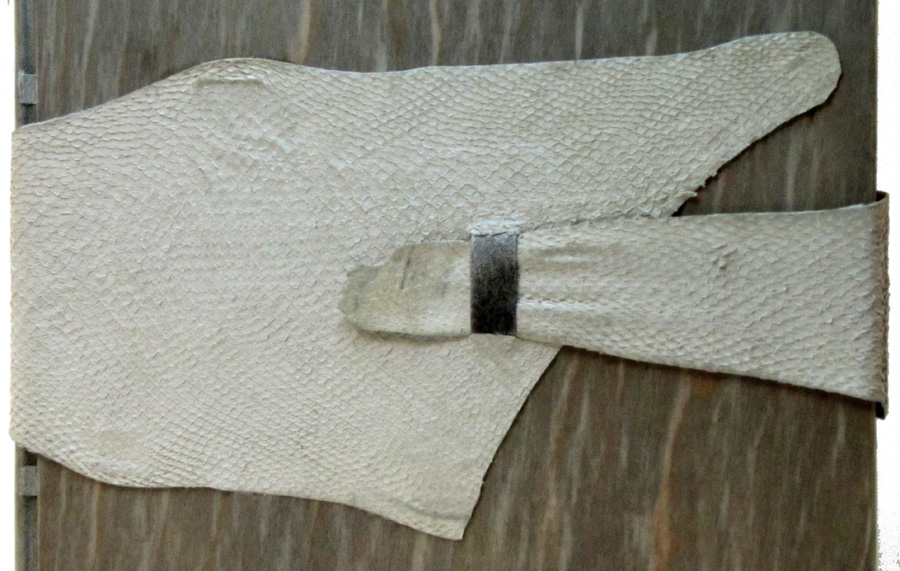

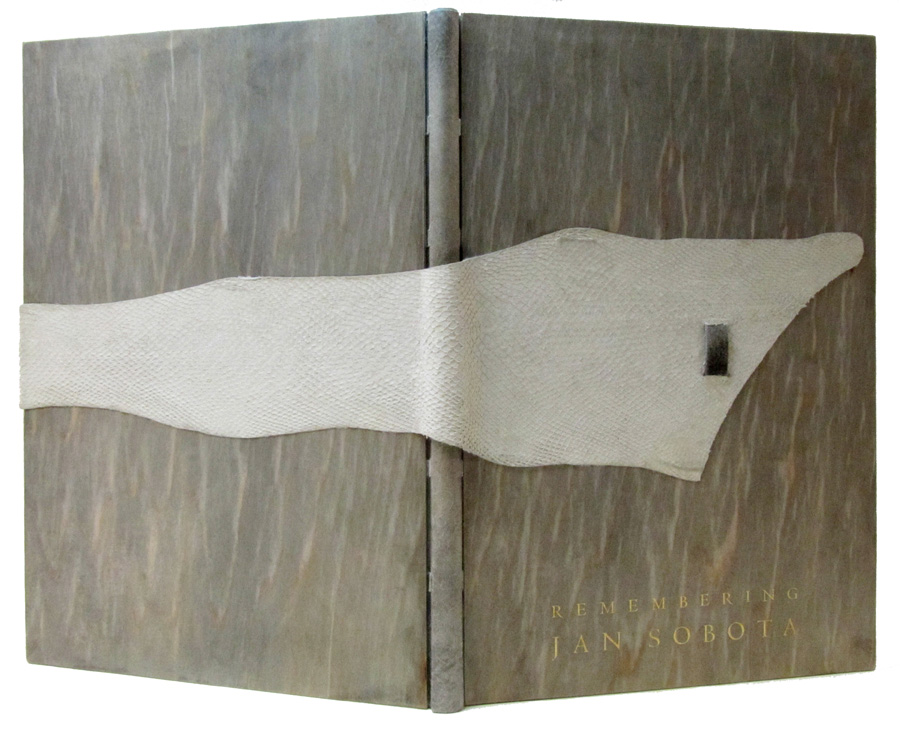

Ladislav Hanka, Remembering Jan Sobota, 2013.

Modified Bradel binding (Gebrochener Rücken); layered Indigo Night Cave Paper endpapers; sewn link stitch on 5 reinforced slips of same paper as ends; endbands of endpaper paper around core; spine covered in brown Kangaroo with cutouts to reveal slips and sewing; boards covered in brown tie-dyed Pergamena deer parchment; onlays of suede Salmon leather with fishing fly mounted into lacuna in parchment; title stamped in gold on front board. 33 x 25.4 x 1 cm. Bound 2013.

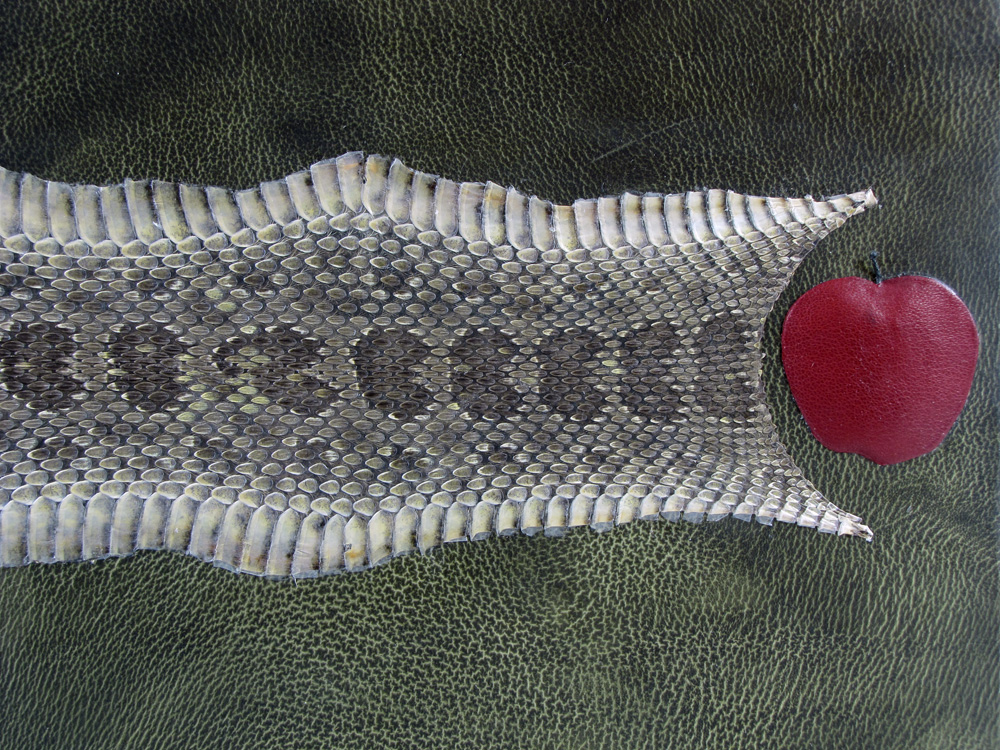

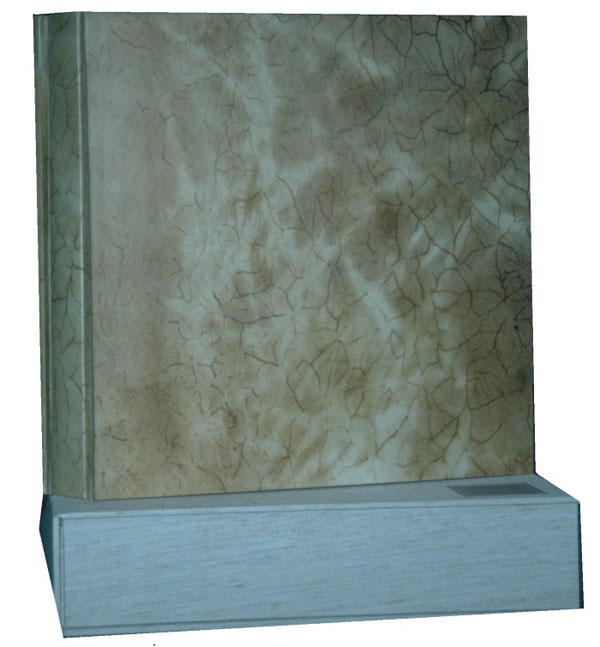

"Garden of Eden" wedding album
Top image | Bottom image

Modified Bradel binding (Gebrochener Rücken); text of Rives Heavyweight paper; endpapers same as text; sewn on two vellum-reinforced leather tapes and one linen tape; red leather endbands; spine covered in brown Cave Paper with cutouts for tapes; boards covered in green Pergamena goat vellum; decor of rattlesnake with sculpted leather-covered apple. 31 x 31 x 6 cm. Bound 2012.

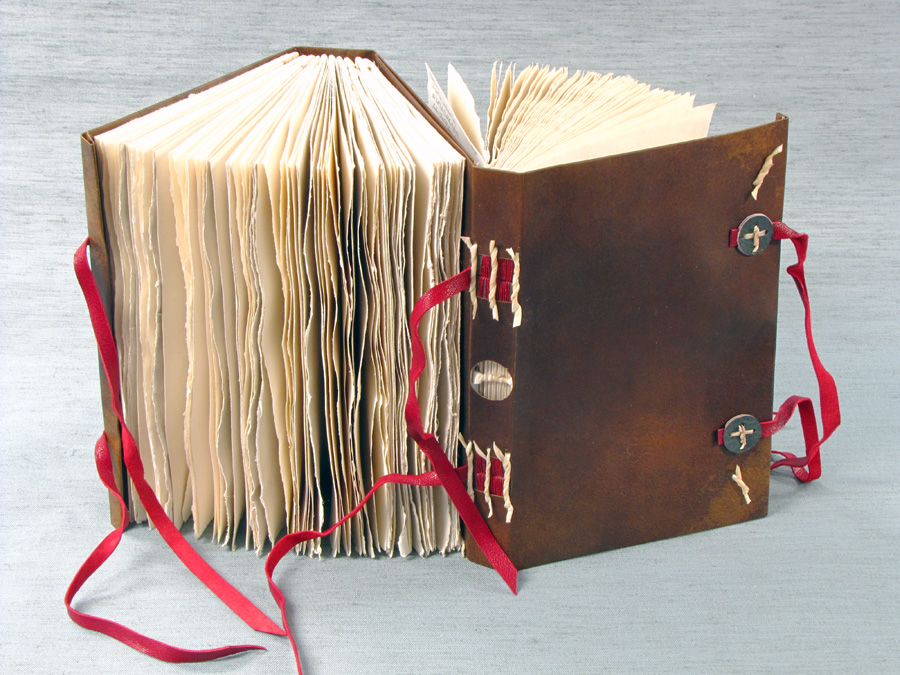

Dos-a-dos limp vellum tacketed binding model.
Top image | Bottom image

Interpretation of, Mandatorum Exitus, 1589, Lelio Buccapadulio Camerari, a 1579 Italian limp tacketed ledger style binding. Interpretation is based on a ledger created by the Canonici Sancti Petri, the priests who celebrate in St. Peter’s. The "Camerarius / Camerlengus,” or administrator in this case was Lelio Buccapadulio. The register records the payments, receipts, and other information for the celebrations of the Cononici Sancti Petri for the years 1587-1590.

Full limp vellum dos-a-dos binding; first textblock sewn on 3 alum-tawed leather thongs with secondary sewing onto 2 split leather thongs; second textblock of individually sewn pamphlets in paper wrappers with vellum spines; pamphlets sewn onto 2 slit leather thongs; both textblocks secured into wrappers with vellum tackets; leather ties at fore-edges held in place with tackets. 23 x 16.5 x 7 cm. Bound 2011.

In my interpretation of this binding I included vellum fragments and leaves that show expenses and income for my own private binding "business" that were printed in the Voglare typeface designed by Stephen Farrell and based on a 1601 Florentine manuscript written by an anonymous clerk. More on Volgare.

Images of the creation process can be viewed here.

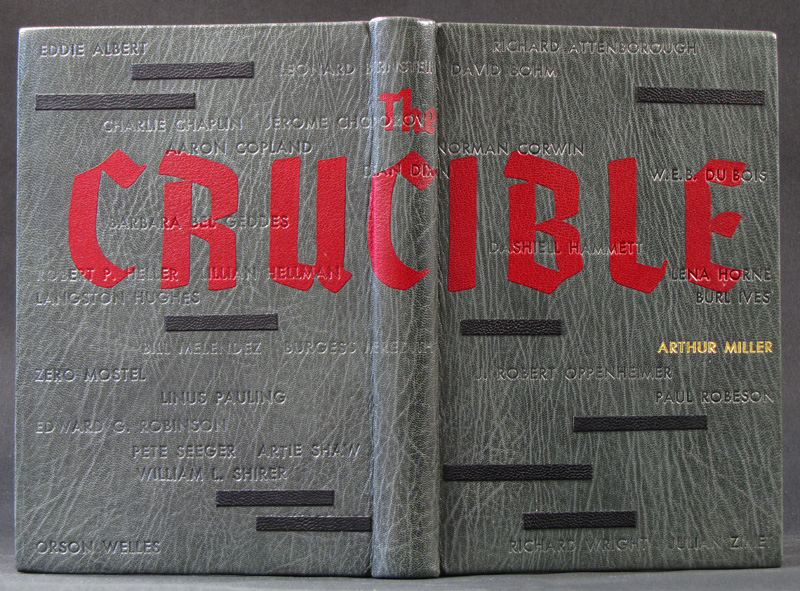

Arthur Miller, The Crucible, The Viking Press, 1953.

1st edition; disbound; washed and deacidified; signatures reformed; plain Rives Lightweight endpapers with sewn leather joint and dark red Fabriano flyleaf and doublure; sewn on three tapes; edges rough cut on three sides with top edge gilt; handsewn silk endband; covered in full gray goat with title in onlaid leather letters; names stamped in blind and gold; low relief black leather onlays. 20.5 x 14.5 x 2.5 cm. Bound 2011.

The individuals whose names are stamped into the cover were persecuted for their political beliefs during the McCarthy Era. The black leather bars represent the hundreds other persecuted individuals not listed by name.

Pamela Leutz, The Thread That Binds, Oak Knoll Press, 2010.

Modified Bradel binding (Gebrochener Rücken); red Roma endpapers; sewn link stitch on four reinforced leather tapes; dark red and gray handsewn endbands; spine covered in gray leather with cutouts for tapes; boards covered in reddish brown Pergamena deer vellum; titled stamped in gold on front cover with leather onlays. 23 x 15.5 x 4 cm. Bound 2010.

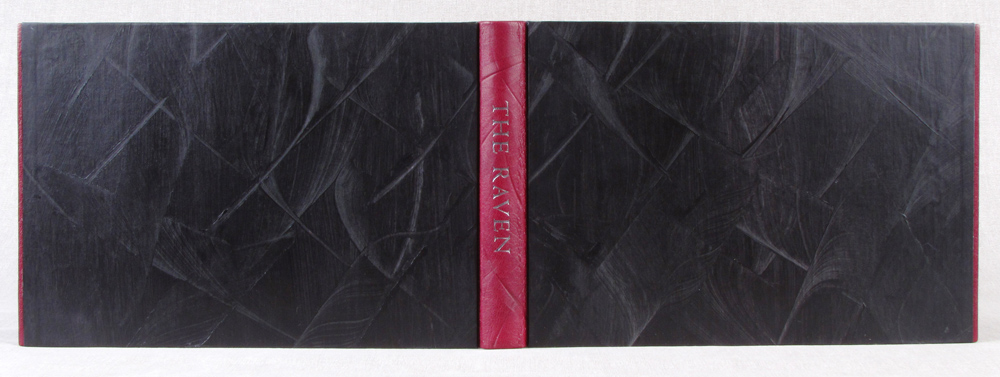

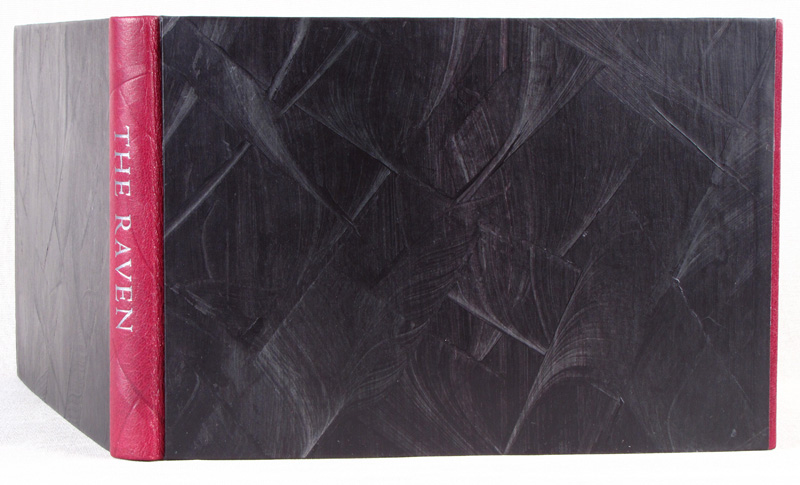

Edgar Allan Poe, The Raven, Cheloniidae Press, 1986. Alan James Robinson, illus.

Modified Bradel binding (Gebrochener Rücken); pastepaper endsheets; sewn on two tapes; pastepaper stuck-on endband; spine covered in dark red goatskin with feathers pressed into surface; boards covered in pastepaper made by the binder with leather fore-edges; in anthracite foil on spine. 16.8 x 25 x 2.5 cm. Bound 2010.

View with both boards open.

Lance Hidy, Designing the Mentoring Stamp, Kat Ran Press, 2007.

Plain endpapers same as text; sewn on 3 tapes, graphite top edge; orange and blue handsewn endband;covered in pastepaper made by the binder with pastepaper onlays; title stamped in graphite on front cover. 23 x 15 x 1 cm. Bound 2009.

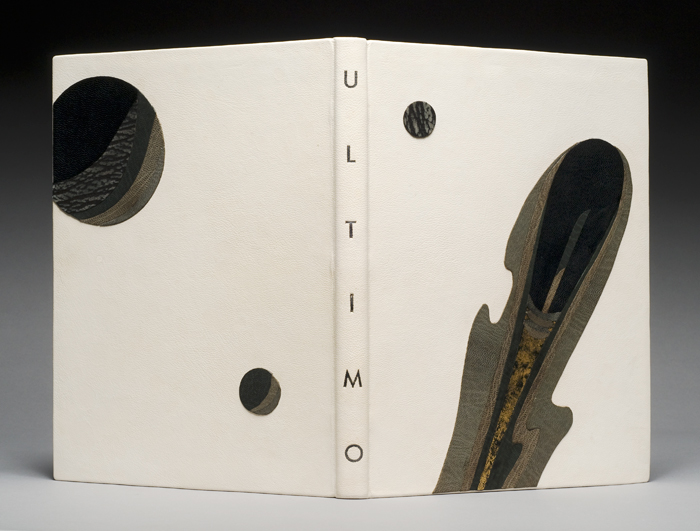

Ruth Vassos, Ultimo, John Vassos, illus., E.P. Dutton, 1930.

Sewn on 3 frayed out cords; endpapers of black Japanese paper with gold and silver flecking; graphite top edge with black and grey sewn endbands; covered in full alum-tawed goat with décor of raised leather onlays and surface gilding; title in graphite. Ultimo tells the story of the death of the earth under blanket of ice, man’s migration below the surface, and ultimate emigration to a new world. The design is drawn from the stark graphic illustrations of Vassos. Just as man was marking time before emigration, the 14+ year binding period was an exercise in marking time. 25.5 x 19 x 2 cm. Bound 1995-2009.

Water

Edelpappband / millimeter binding: Plain endpapers same as text; sewn on 3 tapes;"pastepapered" top edge, gray and blue handsewn endband; leather trip at fore-edges and top/bottom of spine; covered in pastepaper made by the binder; title stamped in graphite on spine. 26 x 19.5 x 2 cm. Bound 2008.

The Guild of Book Workers 100th Anniversary Exhibition Catalog, 2006.

Modified Bradel binding (Gebrochener Rücken); white Johanot endpapers; sewn link-stitch on 4 black vellum slips; slips and thread died black; burnished graphite top edge; pastepaper stuck-on endband; spine covered in dark grey oasis goat with cutouts for slips; boards covered in pastepaper with terracotta leather onlays on both boardsl title stamped in anthracite foil. 28 x 22 x 1.5 cm. Bound 2007. Collection of Karen Hanmer.

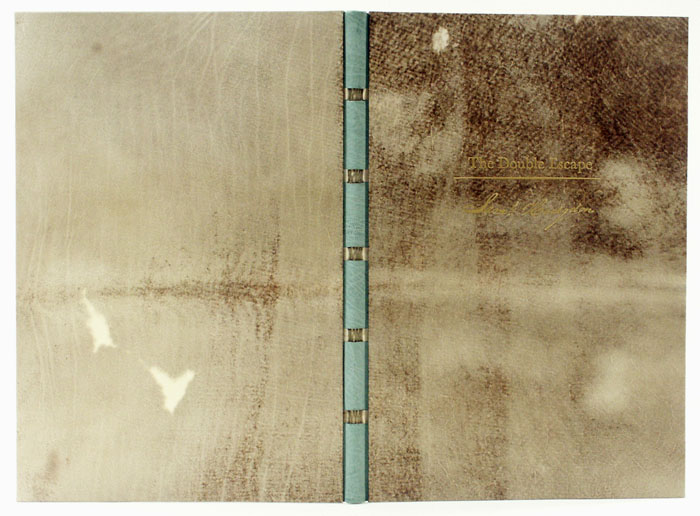

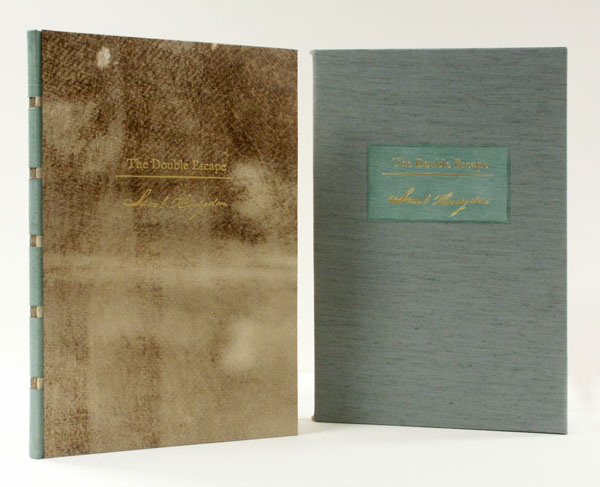

David Hodgdon, The Double Escape. Laureate Press, 2005.

Modified Bradel binding (Gebrochener Rücken); endpapers of white Ingres; sewn using link stich on five vellum slips; top edge in graphite and burnished; sewn silk endbands; spine covered in teal goatskin with cutouts to reveal vellum slips. Boards covered in natural deer vellum; title stamped in gold on front cover. Slipcase covered in lightblue Canapetta bookcloth with vellum edging at top and bottom; gold stamped teal goatskin leather label. 38 x 26 x 1.5 cm. Bound 2007.

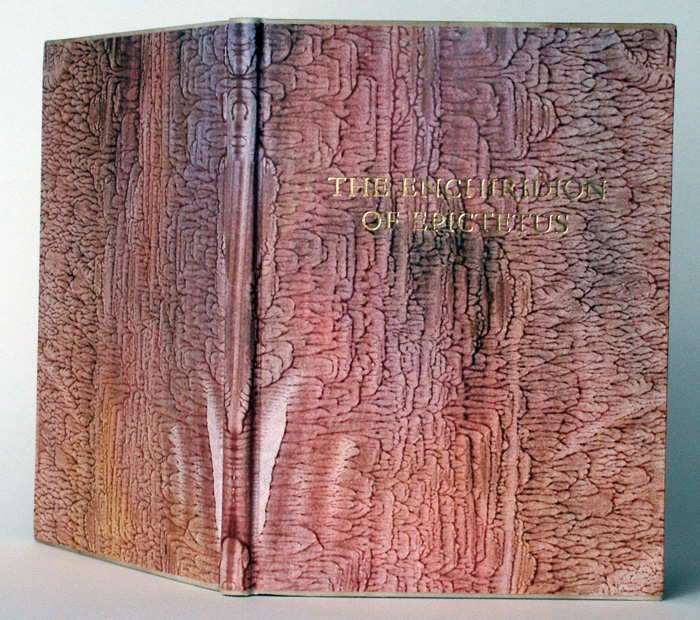

The Enchiridon of Epictetus, Press Intermezzo, 1997.

Edelpappband / millimeter binding: Endpapers of red Roma paper; top edge gilt; endband of pastepaper around thread core, vellum trim along top and bottom edges; covered in hand-made pastepaper; title in gold on front cover. 16.5 x 12 x 1cm. Bound 2005.

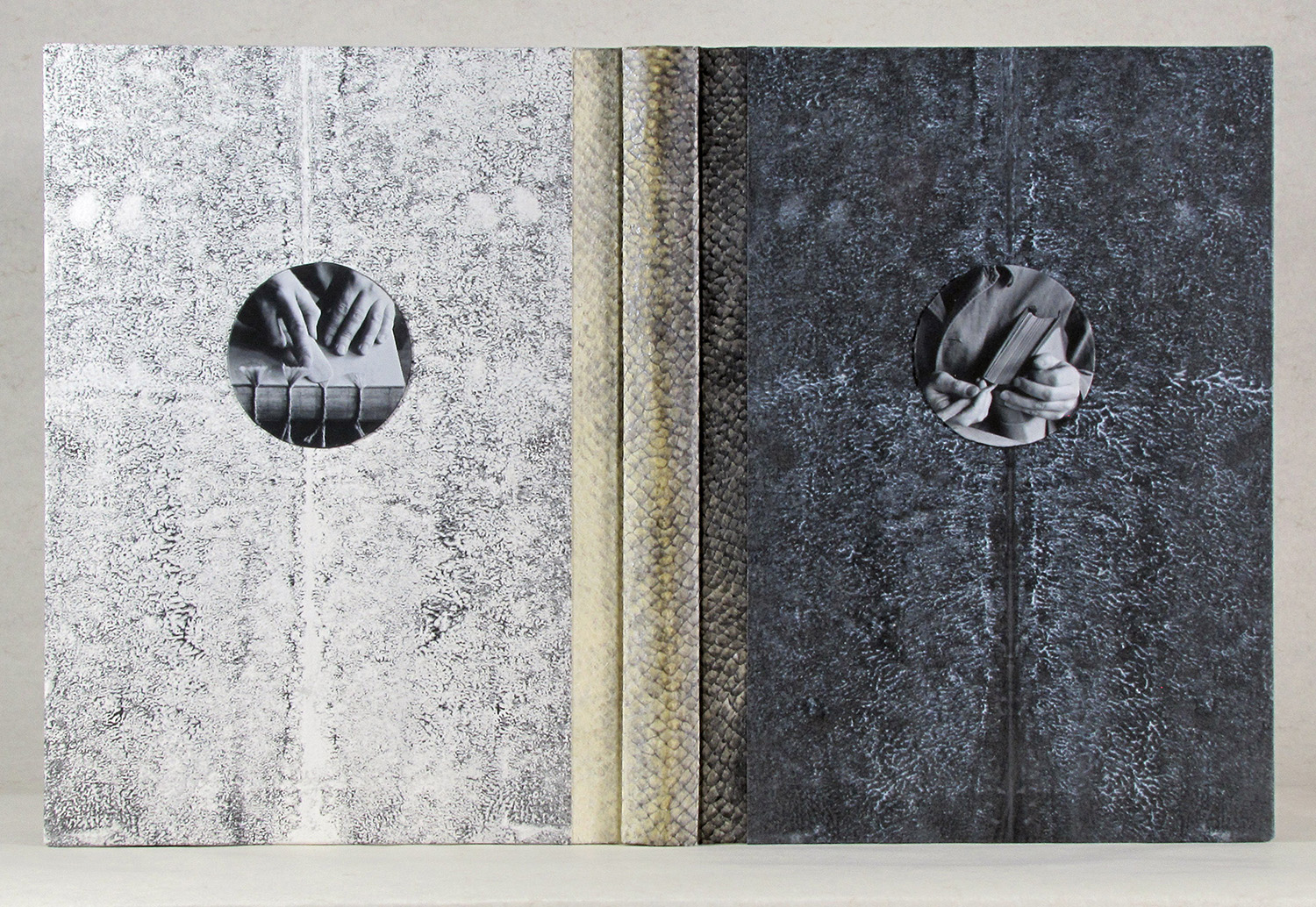

Fritz and Trudi Eberhardt, Rules for Bookbinders, The Boss Dog Press, 2003.

Edelpappband / millimeter binding: Endpapers same as text; top edge in graphite and burnished; dark red leather endband around thread core; vellum trim at head/tail caps with invisible corners; covered in handmade pastepaper; title in graphite on front cover. Soft “Ascona-style” slipcase covered in paper to match book with title in graphite on spine. 18 x 12.5 x 1cm. Bound 2005.

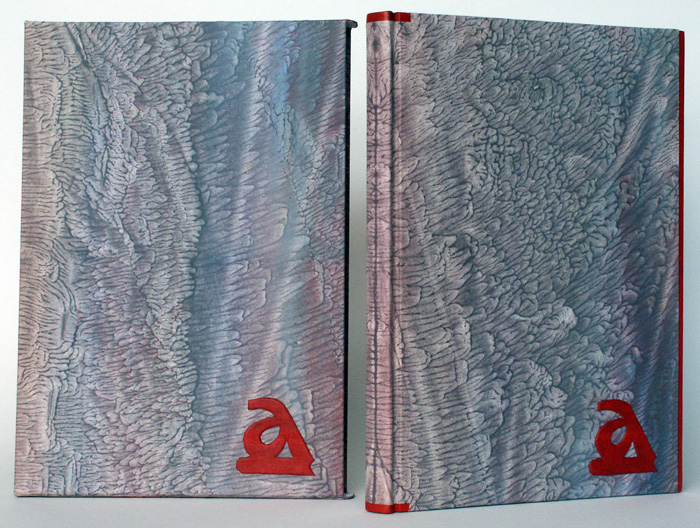

Wolfgang Puissant, Centro del bel Libro Ascona, 1988.

Edelpappband / millimeter binding: Endpapers of grey Ingres; top edge in graphite and burnished; blue leather endband around thread core; red eel leather trim at head/tail caps and foredge; covered in hand-make pastepaper; logo of Centro del bel Libro as raised red eel leather onlay. Soft “Ascona-style” slipcase covered in paper to match book with title in gold on spine with logo of Centro del bel Libro as raised red eel leather onlay. 20 x 14.5 x 1cm. Bound 2005.

The Book of Origins – Le Livre des Origines, André Ricard, 2004.

Set book binding exhibition organized by ARA-Canada.

Modified Bradel binding (Gebrochener Rücken); textblock sewn on three slips of Cave Paper brown walnut dyed paper; endpapers of Cave Paper brown walnut dyed paper; gilt top edge; sewn silk endbands; Bradel case with 1/4 veined calf vellum spine and undyed goatskin sides; slips laced through at joint; decor of codfish leather onlay and blind tooling. 22.5 x 14.5 x 2.5 cm. Bound 2005. Collection of Karen Hanmer.

Noirs, Bleus, Sables, Livre de poète de Nane Couzier, 2001.

Set book binding exhibition organized by ARA-Canada.

Textblock sewn on 5 leather/vellum slips in black, blue, and brown; graphite top edge; sewn silk endbands; case covered in full blue dyed goat vellum; leather/vellum slips laced through at joint; multicolored colored spine label with title in graphite foil. Leather onlays on case derived from typography of text. 40 x 25 x 2.5 cm. Bound 2005.

L’Infinito, 1999.

Exhibition catalog to the Mostre Internationale Di Rilegatura D’Arte held in Italy, 1999. German-style springback; sewn on three tapes with endsheets of Roma paper; graphite top edge; red leather wrapped endband; covered with two veined calf vellum panels at top and bottom with center panel painted with textured acrylic; spine and sewing exposed in center panel and painted with textured acrylics; title stamped in gold. 28 x 25.5 x 6.5 cm. Bound 2004.

Teach Me, Star of Night! / Laer Mig, Nattens Stjerne!, Bird Press, 2000.

Modified Bradel binding (Gebrochener Rücken); sewn on 3 tapes; endpapers of Cave Paper “Alphabet”; graphite top edge; handsewn silk endbands; spine covered in snakesekin with boards covered in veiney calf vellum. Title stamped in graphite foil with grey leather onlays reflecting the typography of the poetry. Dimensions: 24 x 27.5 x 1.5 cm. Bound 2004. Binding is on the deluxe, hand-colored edition. The regular edition binding can be seen here.

Saturday Night, 1953 / The Elements

Saturday Night, 1953 / The Elements, Angorfa Press, 1998.

Edelpappband / millimeter binding: Sewn on 3 ramie tapes; plain endsheets same as text; solid graphite edges; red eel-skin leather endbands; "millimeter / edelpappband" case covered in original pastepaper by binder with blue eel-skin leather trim at head, tail, and along foreedges; title stamped in black on spine. 18 x 13 x .7cm. Bound 2003. The book, in the "Cased Binding" category, was awarded the Harmatan Leather Award for Forwarding in the Society of Bookbinders' 2003 Bookbinding Competition.

John DePol: A Catalogue Raisonné 1935 -1998

John DePol: A Catalogue Raisonné 1935 -1998, The Book Club of California, 2001.

Sewn on 3 frayed out cords; sewn "zig-zag" endsheets of grey Roma paper with leather joint; graphite top edge; brown and blue endbands. Covered in full Harmatan goat; raised leather onlays with text in reverse, and portrait on leather using a laser printer directly on the leather. 31 x 23.5 x 3cm. Bound 2003.

Carsten Ramcke, A Christmas Tale, and Other Short Stories, 2002.

Compilation of railroad related Christmas stories produced in an edition of two; full paper case (Edelpappband / millimeter binding) covered in pastepaper over laser output by the binder with grey leather top and bottom edging; printed paper spine label. 21 x 14.5 x 1cm. Bound 2002.

Eisenbahn Fahren - copy 2

Carsten Ramcke, A Christmas Tale, and Other Short Stories, 2002.

Compilation of railroad related Christmas stories produced in an edition of two; full paper case (Edelpappband / millimeter binding) covered in pastepaper over laser output by the binder with grey leather top and bottom edging; printed paper spine label. 21 x 14.5 x 1cm. Bound 2002.

Animals That Should Exist...

Gregory Santos, Animals That Should Exist But Never Have, 2002.

Letterpress text with photopolymer illustrations by Gregory Santos; text sewn on 2 raised cords with non-adhesive (Louise Genest) concertina leather spine; boards covered in full veiney calf vellum with original plate underlaid; cords wrapped with thread, laced into boards, and colored with acrylics; handsewn endbands; sharkskin covered spine pieces at head and tail. 19 x 15.25 x 2cm. Bound 2002.

26 Words

26 Words, Bird Press, 1998.

An artist's alphabet book based on 26 random selected words from the dictionary illustrationed lithographically printed from hand-drawn plates with letterpress text all on Rives BFK. Half the edition is printed on light gray, the other half on beige using red ink Covered in full Niger goat with onlays of chagrin, oasis and goat; housed in hinged and cut-out slipcase in leather and veiney calf vellum. 12.5 x 14 x 4 cm and when extended fully it is almost 7 meters' long. Bound 1998 in edition of 10 unique bindings in addition to 3 fine bindings which were completed between 1998 and 2000. This alphabet book is a collabortive effort between Thorsten Dennerline, and was originally completed for the Guild of Book Workers' exhibit ABECEDARIUMS.

Heaven on Earth

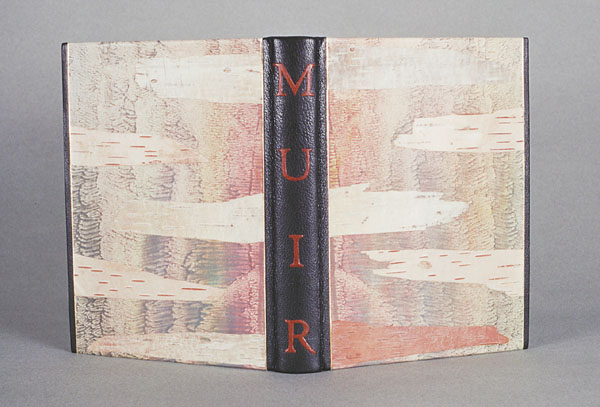

John Muir, Heaven on Earth, Press Intermezzo, 1998,

Quarter leather case binding with leather along fore-edge; sides covered in pastepaper with onlays of birch bark; text block sewn on tapes; burnished graphite top edge; handsewn endbands; title in leather covered relief on spine. 21.5 x 16.5 x 3.5cm. Bound 1999.

Paper

A Collection of Paper Samples from Hand Papermills in the United States of America, Peter and Donna Thomas, 1993.

Sample book of 27 examples of the art of hand papermaking in the U.S.

Modified Bradel binding (Gebrochener Rücken); sewn on 4 sharkskin thongs using colored linen thread; endpapers of John Koller's HMP paper; thongs visible through cutouts on spine and run across spine into leather "bosses" on cover; covered ¼ leatherwith pastepaper sides by the binder; titled in relief using leather over board and inset into a leather covered from with HMP paper base. 29.5 x 23.5 x 3 cm. Bound 1996.

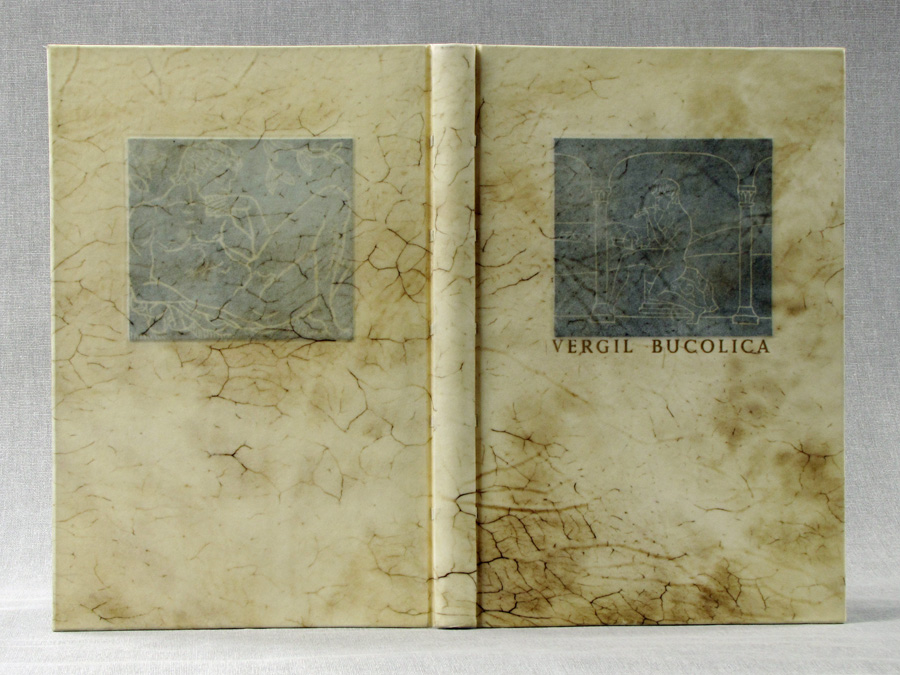

Vergil, Bucolica,Aristide Mailloil (illus.), Suhrkamp Verlag, Frankfurt, 1952.

Sewn five vellum slips with plain paper endsheets; gilt top edge; handsewn silk endbands; vellum slips laced through cover; covered in full veiney calf vellum; low relief reversed illustrations underlayed beneath vellum; titled in gold on front cover. 26.5 x 17 x 2 cm. Bound 1994.

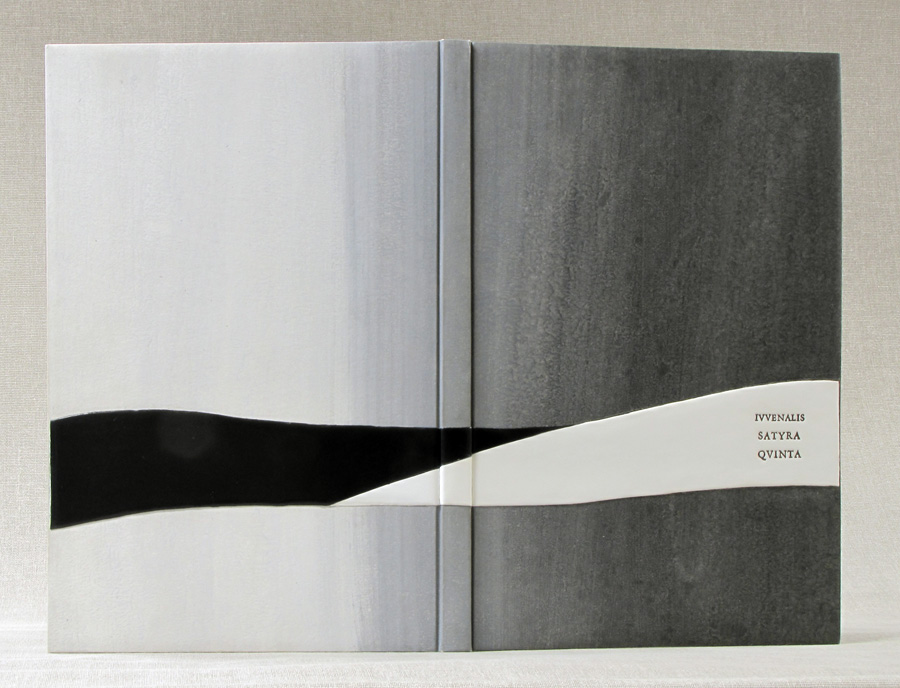

Satyra Qvinta Ivvenalis / Juvenal's Fifth Satire, Windover Press, 1979.

Sewn on 3 frayed out cords with plain paper endsheets; gilt top edge; handsewn silk endbands; covered in full oasis goatskin with leather onlays; tooled in blind. 25.5 x 17 x 2 cm. Bound 1994.

Daphnis und Chloe

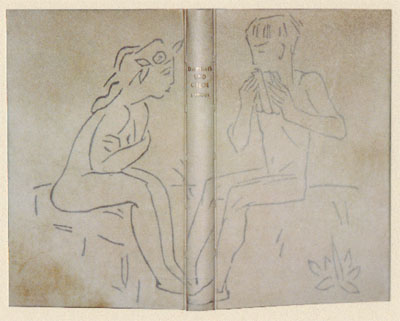

Daphnis und Chloe, Longus, Hauswedell und Co., Leipzig, 1939.

Sewn on 5 vellum slips; graphite top edge; black and gold endbands; vellum slips laced through cover; covered in full vellum with underlayed illustration from text and title in gold on spine. 24 x 15 x 2cm. Bound 1994.

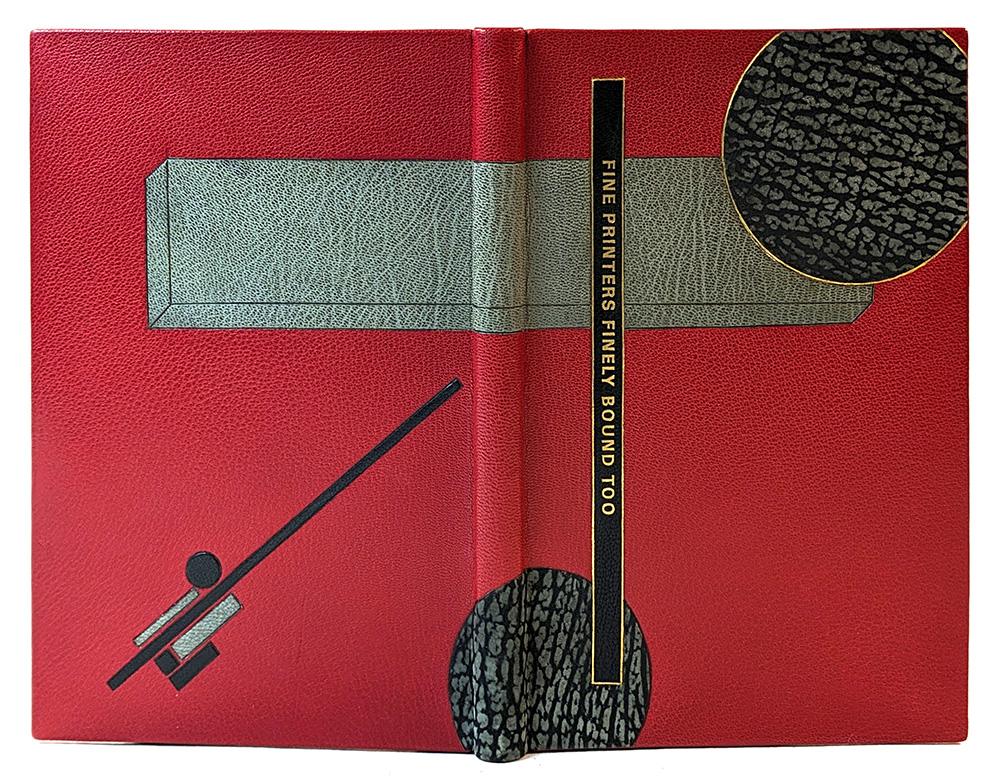

Fine Printers Finely Bound Too - 1

Fine Printers Finely Bound Too, The Guild of Book Workers, New York, 1992.

Exhibition Catalog to the Guild's 85th anniversary exhibition. Sewn on 3 frayed out cords; gray "zig-zag" endsheets and sewn red leather joint; graphite top edge; red and gray endbands. Covered in full chagrin leather with multicolored onlays in black, gray and sharkskin. Tooled in gold and blind. 24 x 16 x 1.5cm. Bound 1993.

Fine Printers Finely Bound Too - 2

Fine Printers Finely Bound Too, The Guild of Book Workers, New York, 1992.

Exhibition Catalog to the Guild's 85th anniversary exhibition. Sewn on 3 frayed out cords; gray "zig-zag" endsheets and sewn red leather joint; graphite top edge; red and gray endbands. Covered in full chagrin leather with multicolored onlays in black, gray and sharkskin. Tooled in gold and blind. 24 x 16 x 1.5cm. Bound 1993. Whereabouts unknown – sold on eBay by original commissioner.

Opus Salvelinus

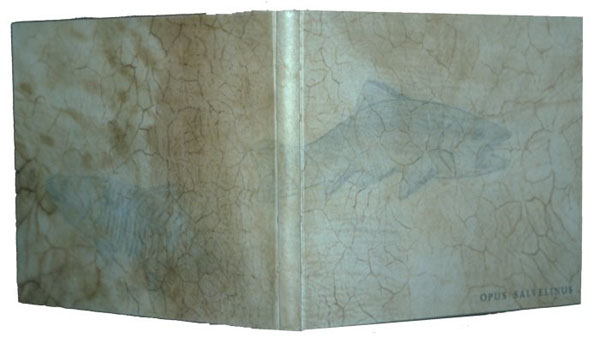

Opus Salvelinus, Ladislav Hanka, Rarach Press, Kalamazoo, 1990.

Original lithographs by Ladislav Hanka depicting the life-cycle of the trout. Sewn on 5 vellum slips; olive and turquoise endbands; vellum slips laced through cover; covered in full veiney calf vellum. Decor derived from the illustrations; underpainted charcoal and watercolors. Title in black on dark-red full-length leather label. 26 x 28.5 x 2 cm. Bound 1993.

Opus Salvelinus, Ladislav Hanka, Rarach Press, Kalamazoo, 1990.

Original lithographs by Ladislav Hanka depicting the life-cycle of the trout. Sewn on 5 vellum slips; olive and turquoise endbands; vellum slips laced through cover; covered in full veiney calf vellum. Decor derived from the illustrations; underpainted charcoal and watercolors. Title in stamped in black on front cover. 26 x 28.5 x 2 cm. Bound 1993.

Four Greek Women

Four Greek Women, Thelfini Press, New Haven, 1982.

Book of poetry by four Greek women poets. Sewn link stitch; black leather endbands; leather inner joint with endpapers of paper; covered in full terracotta oasis goatskin, with onlays of calf and goat; tooled and titled in blind and gold. 21.7 x 14 x 1.5 cm. Bound 1992. Collection of Egon Verheyen.

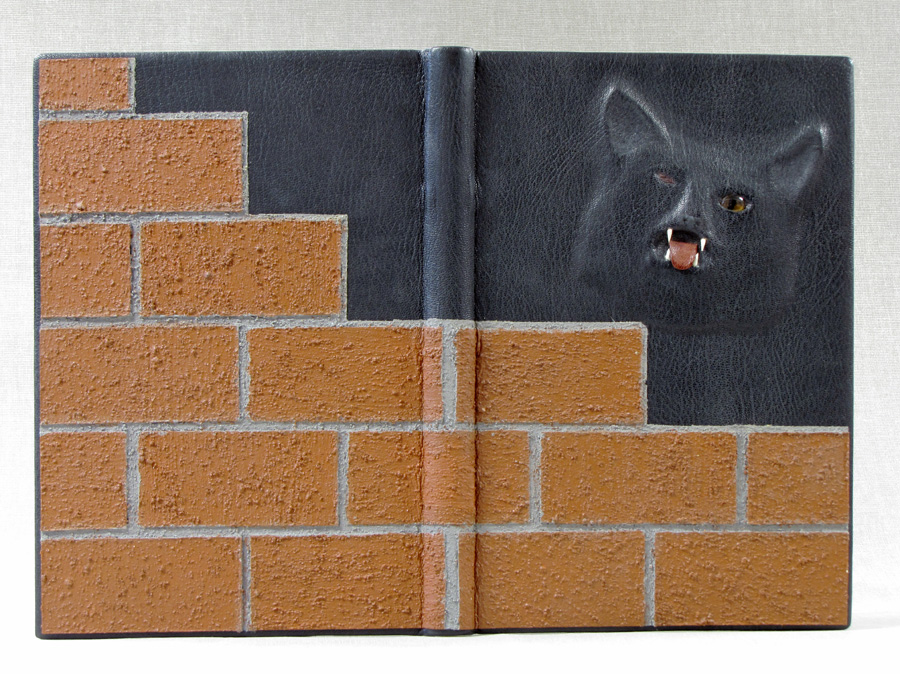

Edgar Allan Poe,The Black Cat, Cheloniidae Press, 1984. Alan James Robinson, illus.

Sewn on three frayed-out cords; pastepaper endsheets with leather joint; handsewn silk endbands; covered in full black oasis goatskin with sculptural rendering of cats head including glass eye and mixed media brickwork. 24.2 x 16.5 x 3 cm. Bound 1992.

Satyra Qvinta Ivvenalis / Juvenal's Fifth Satire, Windover Press, 1979.

Sewn on 3 frayed out cords with black and white pastepaper endsheets; handsewn silk endbands; case covered in pastepaper with black and white boxcalf onlay; title stamped in black. 25.5 x 17 x 2 cm. Bound 1992.

A Fowl Letter Book

A Fowl Letter Book, Carol J. Blinn, The Warwick Press, Easthampton, 1989.

Alphabet book printed letterpress with hand colored illustrations by C.J. Blinn. Sewn link stitch; orange double folio endleaves; solid graphite edges, orange paper endbands. Covered in full vellum. Decor of underlaid letters in black. Duck's head and apple made of sculpted board covered with reversed alum tawed pig, and paper. 16 x 10.5 x 1cm. Bound 1992.

Dante's Inferno

Dante's Inferno, Tom Philips, Thames and Hudson, New York, 1985.

Sewn on five stained (black) vellum slips; gray Roma endsheets; solid graphite edges; violet and burgundy endbands. Covered in full transparent vellum over boards with slips laced through cover. Decor is an original woodcut on Morike paper by artist Jeanine Coupe-Ryding. 29 x 21.5 x 4 cm. Bound 1990.

Bilder des Todes

Bilder des Todes (Dance of Death), Hans Holbein, Insel Verlag.

Facsimile of an early 1920's Insel Verlag publication. Text and images copied onto nideggen paper from the original; sewn with a linked stitch; endsheets same as text; solid graphite edges; maroon leather endbands; covered in full benyon vellum with decor underneath (vellum made selectively transparent). 18.5 x 12.75 x 1 cm. Bound 1989.

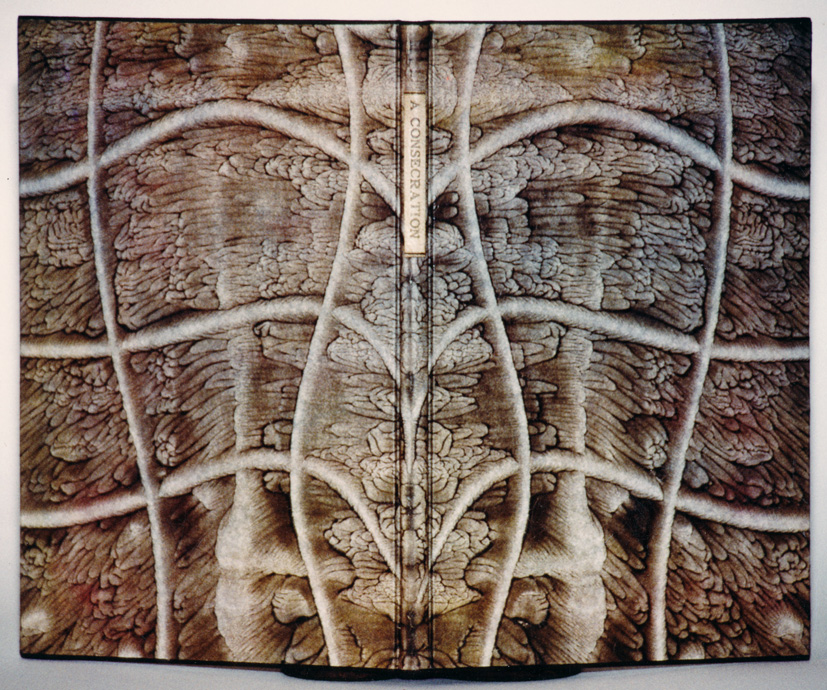

A Consecration

A Consecration, Lisa Pecoraro, 1987.

Edelpappband / millimeter binding: Sewn on tree linen tapes; plain paper endsheets; graphite top edge; purple leather endbands; full paper case (millimeter binding) covered in pastepaper by the binder with olive leather top and bottom edging; title tooled in blind on natural leather label. 21.7 x 14.1 x .7 cm. Bound 1987.


Other Bindings - Click to Enlarge:

A selection of recently bound presentation bindings can be found here.

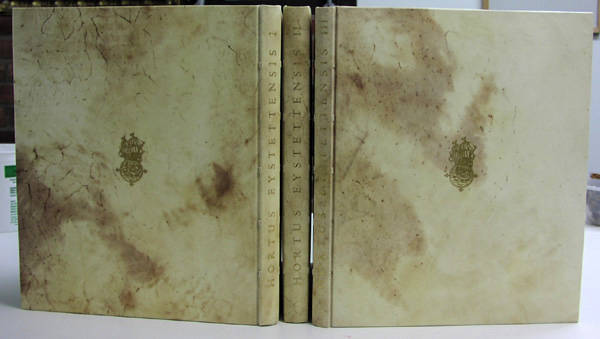

Hortus Eystettensis

Wedding Album
Presentation BindingWedding Album
